Description
Here’s what Palmer say about the PWT 08 MK2 Universal 8-Outlet Pedalboard Power Supply:
No unwanted noise, plenty of output for power-hungry pedals, and slim design

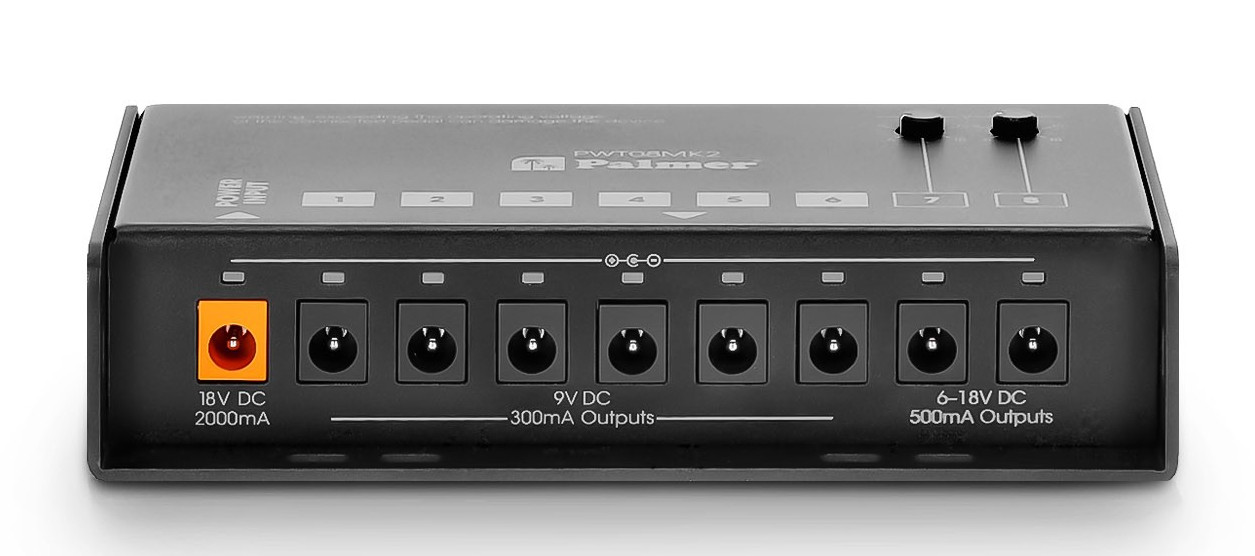

The PWT 08 MK2 power supply stands out with its slim design, which easily fits under almost any pedal boards. The total capacity of 2,000 mA is distributed over eight individually isolated 9V DC outputs.
Two of the outputs are adjustable between 6 and 18 volts to simulate the voltage drop of old batteries, or to feed effects pedals with higher voltage requirements. In addition, these two individually isolated outputs provide 500 mA each, making them ideal for digital effects pedals with high current requirements. The other six individually isolated outputs provide 300 mA each.
The PWT 08 MK2 power supply is regulated for a stable voltage supply, and is protected against short circuit and overvoltage issues. The PWT 08 MK2 pedalboard power supply is also equipped with a power LED on the input socket, and a two-colour LED on all outputs to indicate output status.
It comes with the appropriate US/UK/EU power adapter and a complete set of DC cables.
The PWT 08 MK2 is the ideal solution for a low-noise pedalboard that features power-hungry effects pedals.
Specifications
- Product type: Power Supplies
- Single isolated DC outputs: 8
- Output 1-6: 9 V (300 mA max)
- Output 7-8: 6 V – 18 V (500 mA max)
- Output connectors: 2.1 x 5.5 mm
- Output voltage: 6 V – 18 V
- Individually isolated outputs: Yes
- Polarity: Center negative
- Indicators: Power, status LED (green: output OK / red: error)
- Controls: Output voltage regulator
- Depth: 80 mm
- Width: 140 mm
- Height: 32 mm
- Weight: 0,293 kg
- Accessories: Plug-in power supply PW18VDCUNI (EU/UK/US), 8x DC cable (60cm), 4x rubber feet
- Noise: < 40 µV (Output 1 – 8)
- Relative Humidity: < 80 % ( non-condensing )
- Ambient temperature (in operation): 0°C – 40 °C
