Description

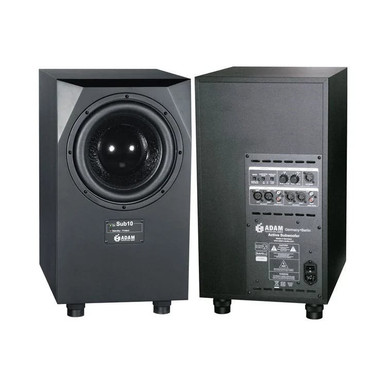

Enhance your monitoring system’s low end frequency response with the ADAM Audio SUB10 MkII subwoofer. Designed for professional audio environments, this powerful subwoofer delivers smooth, distortion free sound reproduction even at high levels. Its highly efficient PWM amplifier, specialised woofer design, and durable heavy duty coil ensure consistent performance over extended listening periods.

With a frequency response extending down to an impressive 25 Hz, the SUB10 MkII is perfect for both near field and mid field monitoring. Its selectable upper cut off frequency allows seamless integration with any monitoring system, while the high pass filter ensures accurate bass management. Capable of delivering a maximum SPL of 113 dB, this subwoofer provides exceptional low end accuracy and power, making it an essential tool for producers, engineers, and musicians.

Key Features:

• Extended Frequency Response:
  The SUB10 MkII delivers a frequency range from 25 Hz to 150 Hz, providing deep and accurate bass extension for precise audio monitoring.
• Selectable Upper Cut Off Frequency:
  Easily adapt the subwoofer to your monitoring system by adjusting the upper cut off frequency between 50 Hz and 150 Hz for optimal speaker integration.
• Heavy Duty, Efficient Design:
  Featuring a specially designed woofer and a powerful PWM amplifier, the SUB10 MkII ensures distortion free sound at high levels with a maximum SPL of 113 dB.

Deep and Accurate Bass Reproduction:

The ADAM Audio SUB10 MkII is engineered to deliver extended low end performance, ensuring every detail in the bass frequencies is reproduced with precision. Whether used in music production, film scoring, or sound design, this subwoofer provides tight, controlled bass that enhances the accuracy of your monitoring setup.

Seamless Integration with Monitoring Systems:

Designed for versatility, the SUB10 MkII features a selectable upper cut off frequency, allowing it to blend seamlessly with a wide range of monitor speakers. Its high pass filter blocks frequencies below 85 Hz, ensuring the subwoofer takes over only when needed, preventing overlap and maintaining a balanced sound.

High Performance Amplification:

Equipped with a highly efficient PWM amplifier, the SUB10 MkII provides powerful and clean amplification while minimising heat build up. This ensures long term reliability and consistent performance, making it an ideal choice for professional studios that require sustained accuracy over extended listening periods.

Specifications:

• Frequency Response: 25 Hz – 150 Hz
• THD > 60 Hz: ≤1 %
• Max. Peak SPL at 1 m: ≥113 dB
• Crossover Frequencies: 50 – 150 Hz
• Input Impedance: 10 kΩ

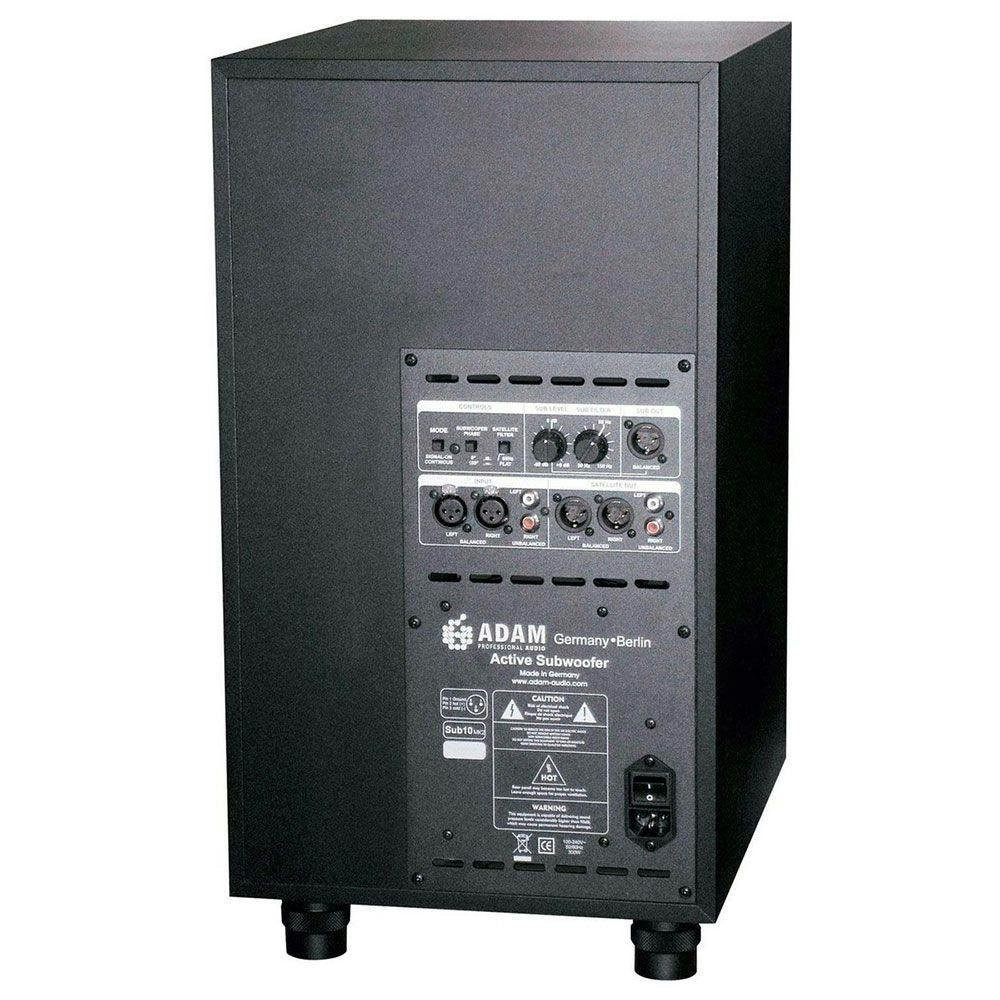

• Panel: Rear
• Weight: 21 kg (46.3 lb)
• Dimensions (H x W x D): 560 mm x 300 mm x 400 mm (22″ x 12″ x 15.5″)
• Warranty: 5 years (2 years standard, plus 3 years with registration)
