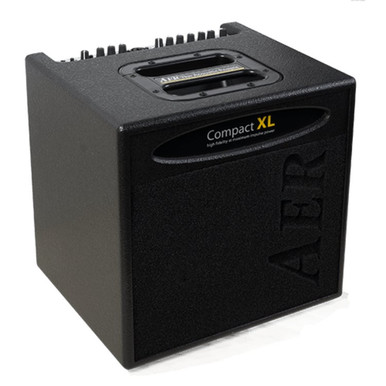

Here's What AER Say About the Compact 60 XL
Another member within the Compact family. A new discrete power amp design for additional dynamic headroom. A new speaker configuration for additional tonal range and the continuation of the well–proven features and functionality of the Compact 60. A beautiful sounding powerhouse for those who need more volume, a more defined tone
Features
- Ground lift
- Switchable 9 V phantom power
- Adjustable aux in
- Footswitch (effects on/off )
- Tuner
- Line out
- Adjustable DI-out
- External effect loop via send/return
- Headphones
Specifications
Channel 1
- 6.3 mm (1/4”) input jack socket as high impedance line input stage with pad (high/low attenuation) and switchable 9 V phantom power, gain control
Channel 2
- Combined XLR/6.3 mm (1/4”) input jack socket as high-quality line or balanced microphone input stage 48 V phantom power, gain control
Equalizer
- Three band tone controls for channel 1 and two band tone controls for channel 2
Colour
- ‘Mid-cut-treble-boost’-filter
Effects
- Digital effect processor with 4 presets: 2 x reverb, delay, chorus
Power amp
- 200 W / 8 ohms, dynamic control
Analog signal processing
- Subsonic filter, low distortion RMS limiter
Speaker
- 2-way speaker system, 8” (200 mm) polypropylen low-midrange + 1” dome tweeter, light-weight neodymium alloy magnets
Dimensions
- 320 mm x 326 mm x 282 mm (12.60“ x 12.90“ x 11.10“), HxWxD
Weight
- 10 kg (22.10 lbs)
