Description
The Boss Guitar Pedals always come out on top. This is New is in stock and ready to post out to you, with fast, reliable delivery straight to your door. For more New Guitar Pedals options, read on for full specifications, demos, and secure online ordering.

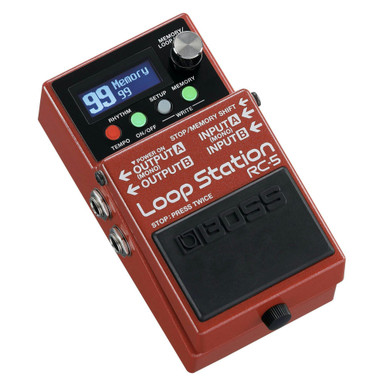

Step up to the RC-5 and prime your pedalboard with maximum looping range. Capture sound with premium 32-bit quality, navigate parameters and monitor loop status with the backlit LCD, and tap into expanded operation via the control jack and TRS MIDI I/O. And with over 50 rhythms, 13 hours of stereo recording, 99 phrase memories, and more, the compact RC-5 puts a deep well of musical power at your feet.
Unparalleled Audio Quality
BOSS' RC-5 has been designed with only the best circuity and components available – meaning virtually zero sonic compromises. Featuring best-in-class 32-bit AD/DA and 32-bit floating-point processing, the RC-5 captures your personal sound with full fidelity and keeps loops crystal-clear – even with multiple overdubs. And with 13 hours of stereo recording time, there’s plenty of space for extended and immersive musical journeys!
Window to Your World
The RC-5 features the most advanced interface available in any compact looper pedal. The LCD lets you keep an eye on loop status as you perform, with a backlight that changes color to indicate recording, overdub, and playback states. And coupled with the multi-function parameter knob, it’s quick and easy to navigate rhythms, kits, system settings, and more in the heat of the moment.
Deep Control
The RC-5’s versatile pedal switch controls all looping functions—record, overdub, play, stop, and undo/redo. But deeper control is also supported if you need it. Connect up to two external footswitches for direct control of many assignable functions, or an expression pedal for continuous adjustments. Players with advanced systems will love the TRS MIDI I/O, which saves space and enables remote operation from MIDI switchers and foot controllers, plus MIDI sync with drum machines and DAWs.
Move and Groove, Forward and Back
With 57 preset rhythms and seven different drum kits, the RC-5 is ready to elevate loop and practice sessions with inspiring grooves for any style. For each rhythm, A/B variations can be selected from the panel or controlled via MIDI while performing. The RC-5’s looper engine also includes a cool reverse function that’s great for infusing your music with fresh sonic colours.
Capture, Practice & Perform
99 phrase memories enable you to store loops as fast as you create them. In addition to audio, a phrase memory includes the selected rhythm and kit – so it’s ready to go when you call it up! Loop audio can be backed up to a computer via USB, in case you want to overwrite ideas on the RC-5 without losing them forever! And with WAV import via BOSS 'Tone Studio', the RC-5 becomes a central playback hub for lesson material, jam tracks, or backing music for your next gig.
Key Features
- Advanced BOSS looping features in a compact footprint
- Class-leading sound quality with 32-bit AD/DA and 32-bit floating-point processing
- Stereo looper engine with 13 hours of recording time
- LCD with multi-color backlight for viewing loop status and editing parameters
- Reverse function for infusing loops with interesting textures
- Seven different drum kits and 57 preset rhythms with A/B variations
- Support for expanded control via external footswitches, an expression pedal, or MIDI
- Full MIDI I/O provided with space-saving mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
- Onboard storage for 99 phrase memories
- Back up and load WAV loops via USB
Specifications
General
- Sampling Frequency: 44.1 kHz
- AD/DA Conversion: 32 bits
- Processing: 32-bit floating point
- Effect: Reverb (only for rhythm part)
- Memory: 99
- Display: Graphic LCD (96 x 32 dots, RGB backlit LCD)
- Nominal Input Level: INPUT A/MONO, B: -20 dBu
- Input Impedance: INPUT A/MONO, B: 1 M ohm
- Nominal Output Level: OUTPUT A/MONO, B:-20 dBu
- Output Impedance: OUTPUT A/MONO, B: 1 k ohm
- Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
- Bypass: Buffered bypass
Recording/Playback
- Number of Track: 1
- Data Format: WAV (44.1 kHz, 32-bit float, stereo)
- Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)
Rhythm
- Rhythm Type: 57 Patterns x 2 Variations
- Rhythm Kit: 7 types
Controls
- MEMORY/LOOP LEVEL knob
- MEMORY button
- SETUP button
- RHYTHM ON/OFF button
- RHYTHM TEMPO button
- Pedal switch
Connectors
- INPUT A/MONO, B jacks: 1/4-inch phone type
- OUTPUT A/MONO, B jacks: 1/4-inch phone type
- STOP/MEMORY jack: 1/4-inch TRS phone type
- USB port: USB B type
- MIDI (IN, OUT) jacks: stereo miniature type
- DC IN jack
Power
- Alkaline battery (9 V, 6LR61 or 6LF22)
- AC adaptor (PSA series: sold separately)
- Expected battery life (alkaline): Approx. 2 hours
Weight & Dimensions
- Weight: 450 g (1 lb)
- Dimensions (mm): 73 (W) x 129 (D) x 56 (H)
- Dimensions (inches): 2-7/8 (W) x 5-1/8 (D) x 2-1/4 (H)
Accessories
- Owner's Manual
- Leaflet
- Alkaline battery (9 V, 6LR61 or 6LF22)
Options (Sold Separately)
- AC adaptor: PSA-S series
- Footswitch: FS-5U
- Dual Footswitch: FS-6, FS-7
- Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
- TRS/MIDI connecting cable: BMIDI-5-35
