Description

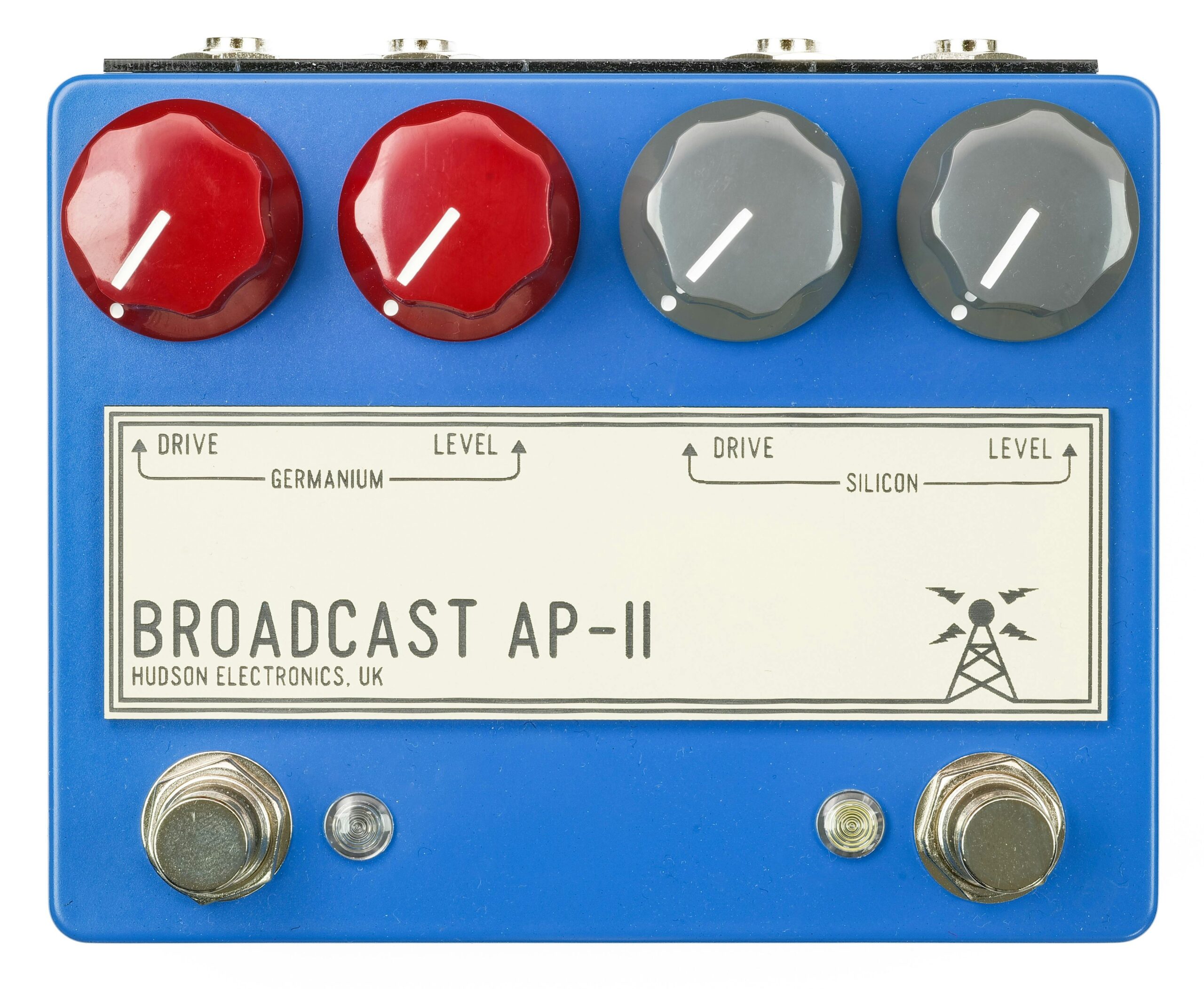

Now Broadcasting – The Broadcast AP-II is a dual pre-amplifier pedal that was co-designed with guitarist Ariel Posen. The pedal features two independent pre-amplifier circuits which are differently voiced. Each one has its own unique voicing.
Each circuit has a large gain range, and once combined, it provides a whole new range of tonal options, which can be anything from a subtle sonic boost, all the way to heavy distortion!
The Broadcast AP-II has a Send / Return loop between the two sections of the pedal, which enables other pedals to be added between the pre-amplifiers, or for each one to be placed at different points in your signal chain.
Silicon Pre-Amplifier
The silicon pre-amplifier is fitted with a silicon transistor and transformer, bringing a smooth, darker tone which was originally seen in the original Broadcast-AP pedal.
- DRIVE – Controls the gain of the silicon preamplifier part of the pedal.
- LEVEL – Controls the output level of the silicon pre-amplifier section.
Germanium Pre-Amplifier
This pre-amplifier removes the transformer and runs with a germanium transistor. This results in a brighter, more aggressive tone.
- DRIVE – Controls the gain of the germanium preamplifier.
- LEVEL – Controls the output level.
Key Features
- Send/Return Loop – Connect your pedal wherever you like in your signal chain, with simple connections.
- Two Pre-Amplifiers – The pedal features two pre-amplifiers which can be used separately, or combined, giving you a whole range of different tonal possibilities.
Specifications
- Power: Required a DC Power Unit (PSU), with voltage 9VDC – 24VDC
- Current Draw: 50mA Maximum
Ariel Posen
Ariel Posen is a singer, songwriter, producer, and internationally renowned guitar player. He is best known for his work as a sideman for the Bros. Landreth.
