Description
The Guitar Amps department take a look at this New Amp, the Lab Gruppen PD3000 3kW Two-Channel Amplifier with Precise Power Management by is New, it is in stock at a great price and delivered to all areas of the UK. Read More for more product information, images, latest prices and how to order.
Here’s what Lab Gruppen say…

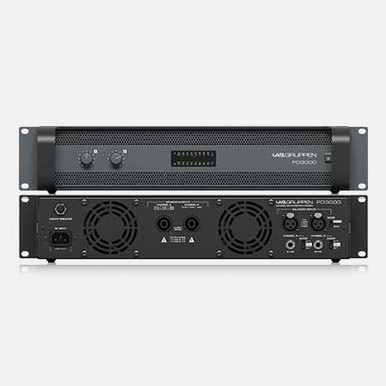

The PD3000
The PD3000 is a two-channel amplifier delivering 2 X 1500W of power for entry/mid-level live sound applications. PD Series amplifiers employ our unique IDEEA Class-D output stage that is ideally matched to the rated power output. To provide flexibility, each channel offers sufficient voltage swing and current capacity to drive loads in any impedance without any additional configuration. In order to have low thermal losses as well as a high voltage swing, the design is based on a permanently bridged output.
Lab Gruppen PD3000 power amplifier is designed and built with competitive price, good performance and protection features in mind. Each amplifier draws on the engineering that has made Lab Gruppen the benchmark of quality for touring concert systems: exceptional sonic performance, rugged construction, proven reliability, and protection features that anticipate every unwelcome possibility.
Applications
PD3000 is a proven and reliable Class-D amplifier and can provide superb audio performance in both background and foreground music sound systems. PD3000 suits a wide range of applications such as entry/mid-level touring, live portable sound, hotels, bars and restaurants, house of worship, performance spaces, and many more.
Simple Control
Just plug it in, crank it up and play. The comprehensive circuit protection will protect your PD3000 and your speakers against short circuits, DC and thermal overload.
Inputs
Balanced XLR and TRS input and linking connectors with optimized sensitivities. Easy set up with configuration of modes and X-over functionality.
Speaker Outputs
PD3000 amplifier employ our unique IDEEA Class-D output stage that is ideally matched to the rated power output. To provide flexibility, each channel offers sufficient voltage swing and current capacity to drive loads in any impedance without any additional configuration. In order to have low thermal losses as well as a high voltage swing, the design is based on a permanently bridged output.
Rugged and Lightweight Rack Mount Chassis
Appropriate and reliable power amplification is vital to any audio system. Inadequate or faulty power amplifiers could cause damage to loudspeakers, or in some cases to the power amplifiers themselves. To prevent damage or service interruptions, the PD3000 amplifier offer advanced features to protect both internal circuits and connected loads.
Specification
General
- Number of amplifier channels 2
- Peak total output all channels driven 3000 W
- Peak output voltage per channel 115 V
- Peak output current per channel 32 A
- Bridge mode No
- Output circuit type Class-D
Amplifier Outputs
- Max Output Power
- All channels driven
- 2 Ω per channel, stereo 1000 W
- 4 Ω per channel, stereo 1500 W
- 8 Ω per channel, stereo 800 W
Audio Performance
- THD+N 20 Hz – 20 kHz @ 1 W < 0.1%
- THD+N @ 1kHz, 1 dB below clip < 0.1%
- Signal-to-noise >90 dB
- Channel separation (Crosstalk) @ 1 kHz >75 dB
- Frequency response 10 Hz to 20 kHz, +0.5/ -1 dB
- Input impedance 10 kΩ unbalanced, 20 kΩ balanced
- Distortion,1/8 rated power < 0.1%
System
- Controls Front Power switch/Gain controls (channels A and B)
- Rear Stereo / mono/switchable Xover: LF / full range / HF, switchable
- Crossover frequency 100 Hz
- Indicators Power RDY LEDs lit green
- Limit, per channel LIM LEDs lit red
- Signal, per channel -30 dB, -24 dB, -18 dB, -12 dB, -9 dB, -6 dB, -3 dB, LEDs lit green/orange
- Thermal Warning, per channel RDY LED blink orange
- Thermal Warning 90%, PSU Both RDY LEDs blink orange
- Thermal fault, per channel RDY LED blink red
- Thermal fault 100%, PSU Both RDY LEDs blink red
- Fault, channel RDY LED lit constantly red
- Fault, device Both RDY LEDs constantly lit red
Connectors
- Inputs / link 2 x XLR + 2 x 1/4″ TRS
Outputs
- Neutrik speakON (2 x NLT4
- Mains connector Locking IEC appliance inlet, C14
Protection Features
- Cooling Two fans front-to-rear air flow, temperature controller speed
- Amplifier protection Thermal and DC protection, Rail sensing and peak current limiting.
- Load protection Controlled start and shutdown,nbehavior, DC-fault protection,
- Short-circuit protection
Power Supply
- Voltage Separate 230 V and 115 V versions available. Not selectable on the product.
- USA / Canada / Japan 100-120 V, 50/60 Hz
- UK / Australia / Europé / Korea / China 220-240 V, 50/60 Hz
- Power consumption @ 4 ohms 1050 W
Dimensions / Weight
- Dimensions (H x W x D) 93 x 483 x 326 mm (3.7 x 19 x 12.8″)
- Weight 6.5 kg (14.3 lbs
- Finish Black painted aluminium chassis and grey front
