Description

Guitars Pedals Amps & Stuff are celebrating Christmas early in the Guitar FX aisle. The Orange Amp Detonator ABY Pedal is all ready to be dropped off by Santa’s little helpers. The Orange range of Guitar FX are of a high standard for the price. We deliver Orange Guitar FX straight to your door via our tracked *roadie service* across the UK, Europe, and the USA. A firm favourite among the finest Guitar FX & accessories available in the UK. if you want more details, click through to the Orange product page direct for more details, images, specs, and all good stuff to order securely online.

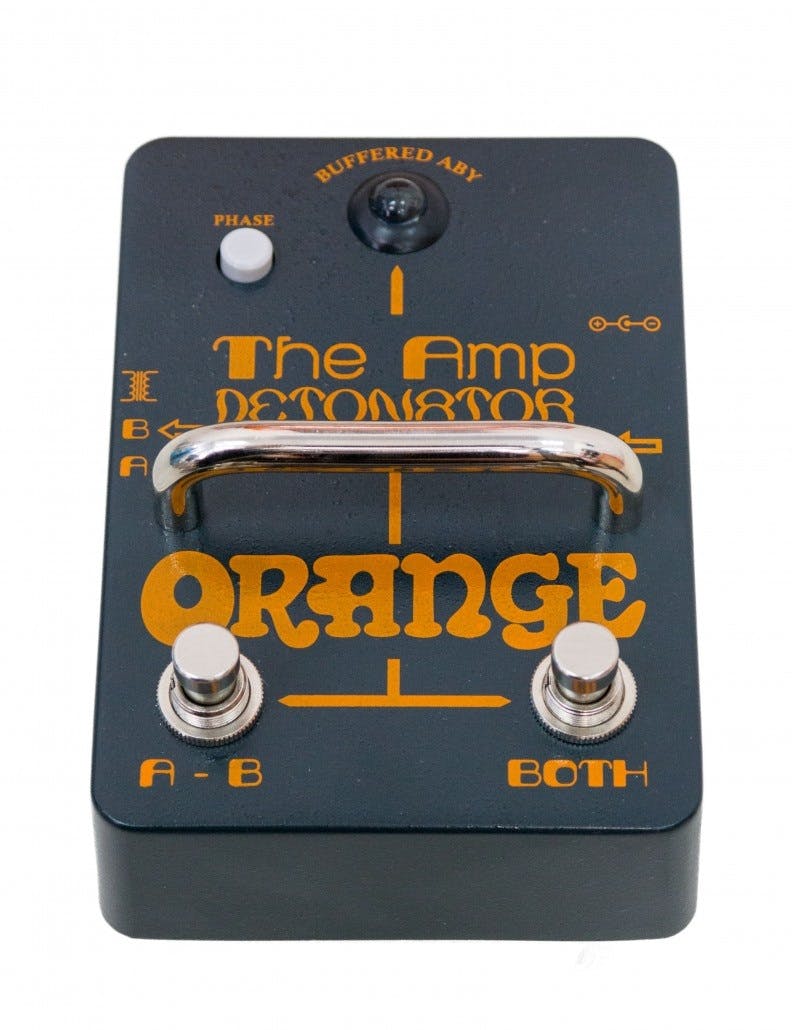

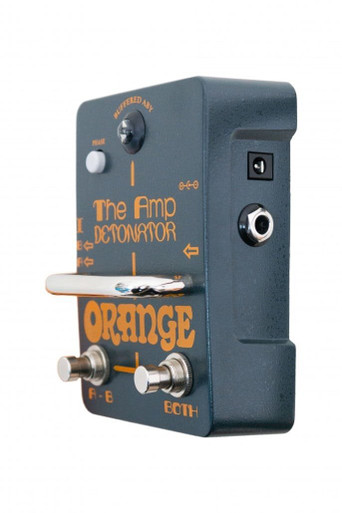

The new orange Amp Detonator pedal is an ABY that’s built for the professional musician.

It’s a well-known fact that running two amps is not only enormous fun, but also a time-honoured way of achieving bigger tones on stage and in the studio. Whether it’s switching between two different amplifiers for their individual characteristics (rhythm and lead, for example) or using them simultaneously for huge walls of sound, pros have been employing this setup for decades.

Achieving this easily, however, has always been a problem for guitar players. Poor quality passive ABY boxes/line selectors load the guitar signal down, degrading the tone and rendering the whole exercise almost pointless. Not to mention ground hum issues caused by non-isolated outputs. On the other hand, active ABY pedals are in short supply and are usually quite cumbersome.

Buffered outputs

Driving long cables is no problem as the Amp Detonator’s buffered low impedance signal ensures your input’s upper frequencies are maintained. Output B features an isolating transformer which eliminates common ground loop hum when using two amps simultaneously. The transformer output has been engineered for maximum transparency, correcting some of the tone-altering characteristics that affect many other ABY boxes.

Phase Correction

Two amps out of phase with each other sound awful but many ABY switchers ignore this. Even if the amps are in phase, running different pedal chains to each amp can reverse the polarity of the signal, causing the two signals to be out of phase when engaging both amps. The Amp Detonator addresses this with a simple fix on the top of the unit.

Specifications

• DIMENSIONS (W × H × D): 9.5 × 6.5 × 13CM (3.74 × 2.56 × 5.12)
• POWER: 9V BATTERY OR 9-12V DC ADAPTER (CENTRE NEGATIVE)
• CURRENT DRAW @ 9V: 12MA
