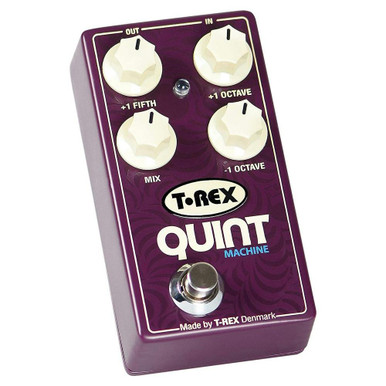

T-Rex Quint Machine Octave Pedal

T-Rex Quint Machine Octave Pedal

£119.99

The T-Rex Guitar Pedals always come out on top. This is New is in stock and ready to post out to you, with fast, reliable delivery straight to your door. For more New Guitar Pedals options, read on for full specifications, demos, and secure online ordering. Here's what T-Rex say about the Quint Machine Classic octave doubling is cool, but throwing in a 5th up and giving all 3 modulated sounds their own volume control opens up a whole new world. Sound like a 12-string. Sound like an organ. Get rid of your dry signal and sound like a synth just…

More Details

View more in
Tags: , ,
View more by

As an affiliate partner, we may earn a small commission when you buy through our links — at no extra cost to you.


Description

The T-Rex Guitar Pedals always come out on top. This is New is in stock and ready to post out to you, with fast, reliable delivery straight to your door. For more New Guitar Pedals options, read on for full specifications, demos, and secure online ordering.

Here's what T-Rex say about the Quint Machine

Classic octave doubling is cool, but throwing in a 5th up and giving all 3 modulated sounds their own volume control opens up a whole new world. Sound like a 12-string. Sound like an organ. Get rid of your dry signal and sound like a synth just owning that lonely heart. We built the T-Rex Quint Machine to give you more, and it will keep you discovering new sounds for years.

Key Features

  • Octave up, octave down, 5th up
  • Individual volume controls, plus master mix
  • Ultra-fast polyphonic tracking
  • Replicate organ, synth or 12-string sound
  • Play power chords on a single note

Specifications

  • Input impedance @ 1KHz: Higher than 1M Ohm
  • Output impedance @ 1KHz: Lower than 1K Ohm
  • Power supply: 9V DC (T-Rex FuelTank)
  • Minimum power supply voltage: 8V DC
  • Maximum power supply voltage: 12,5V DC
  • Current draw @ 9V DC: 145 mA
  • Maximum input signal V p-p: 3V p-p
  • Battery type: 9V battery 6F22
  • Battery life: 30-60 minutes
  • External connectors: input jack, output jack, 9V DC jack
  • Controls: on/off switch, mix, +1 octave, -1 octave, +1 fifth
  • Pedal size incl. knobs (W x H x D): 60 x 50 x 117 mm / 2,4 x 2 x 4,6 in
  • Weight excl. packaging: 0,21 kg / 7,4 oz

Related Stuff:

T-Rex Creamer Reverb Pedal Diamond F-Octave Fuzz Octave Pedal T-Rex Acoustic Soulmate Multi-Effects & Loop Pedal Fulltone Ultimate Octave Fuzz and Octave Pedal

Additional information

Weight 0.58 kg

Stuff About Guitar Pedals

Guitar pedals are compact effects units that shape and enhance a guitar’s sound, sitting between the instrument and the amplifier. They include gain pedals like overdrive and distortion, modulation effects such as chorus and tremolo, time-based effects like delay and reverb, and essential utilities including tuners, compressors and loopers. Understanding basic things such as pedal type, signal order, power requirements and intended use helps players choose pedals that suit their style, setup and playing environment.

The Important stuff

12-String. Octave — An octave effect shifts the guitar signal up or down by one or more octaves and blends it with the original sound. It is used to add thickness, create bass-like lines, or produce higher, harmonised tones, making it popular for lead playing, riffs, and creative sound design.. Pedal — Pedals are the tools that let you shape, colour and transform your sound, from subtle tone enhancement to bold, creative effects. Whether you are adding grit, space, movement or control, a pedal becomes part of your playing rather than just an add-on. Exploring different pedals is about discovering what responds to your touch and helps your sound feel more like your own..
