Description

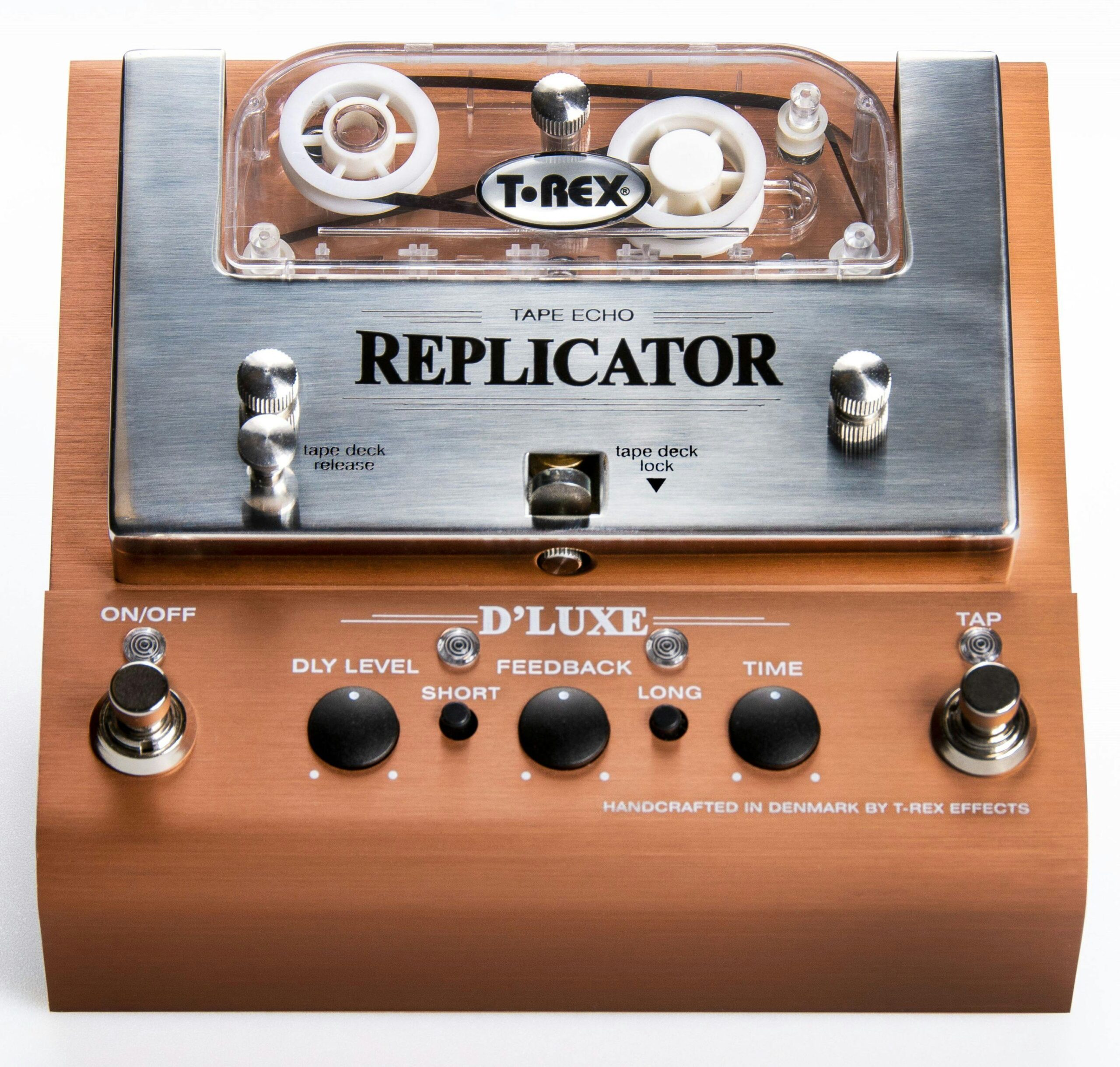

For the players who need more than a digital emulation – the T-Rex Replicator D'Luxe is a true analogue tape echo, and one of the few to incorporate modern tap tempo. This is arguably the pinnacle of delay for your pedalboard, handmade in Denmark by the incredible T-Rex team.
Key Features
- Multiple Playback-heads for true analog tape echoes
- One Record head and two playback heads. Short Head for slap back delay. Long head for longer modern delays, or combine both heads for a semi Delay-Room experience
- Delay time Short head =108 – 520mS. Delay time long head = 215 – 1000 mS
- Tap tempo for Long Head and half the time for the short head
- True Bypass switching with a gold plated relay
- New motor suspension with belt drive, for reduced noise operation
- New Tape deck lock-mechanics to protect pinch roller and tape for longer life span
- All analog signal path from input to output
- Power supply with exchangeable blades 90-240 Volt, and an extra tape cartridge included
Sound
The T-Rex Replicator D'Luxe's unmistakeable vintage sound of tape can be set to three distinct modes: short head, long head and a mix of the two. The short head gives you a playful, versatile slapback which you'll rely on during most of your playing for that crisp edge. The long head is where you get into more atmospheric territory, mixing in shorter notes and letting the Replicator do the work. Combining the two gives you an ethereal landscape to mould using the feedback and saturation dials.
Specifications
- Input impedance @ 1KHz: > 500K ohm
- Output impedance @ 1KHz: >1K ohm
- Power supply (included): 12V DC, center negative
- Current draw @ 12V DC: 300mA
- Maximum input signal V p-p: 8,7V p-p (12dBu)
- External connectors: input, output, DC inlet
- Controls: delay time, feedback, delay level, saturation, kill dry, short, long, on/off, tap tempo
- Pedal size incl. knobs (W x H x D): 80 x 174 x 175 mm / 3,15 x 6,85 x 6,89 in
- Weight excl. packaging: 1,50 kg / 52,91 oz
