Description

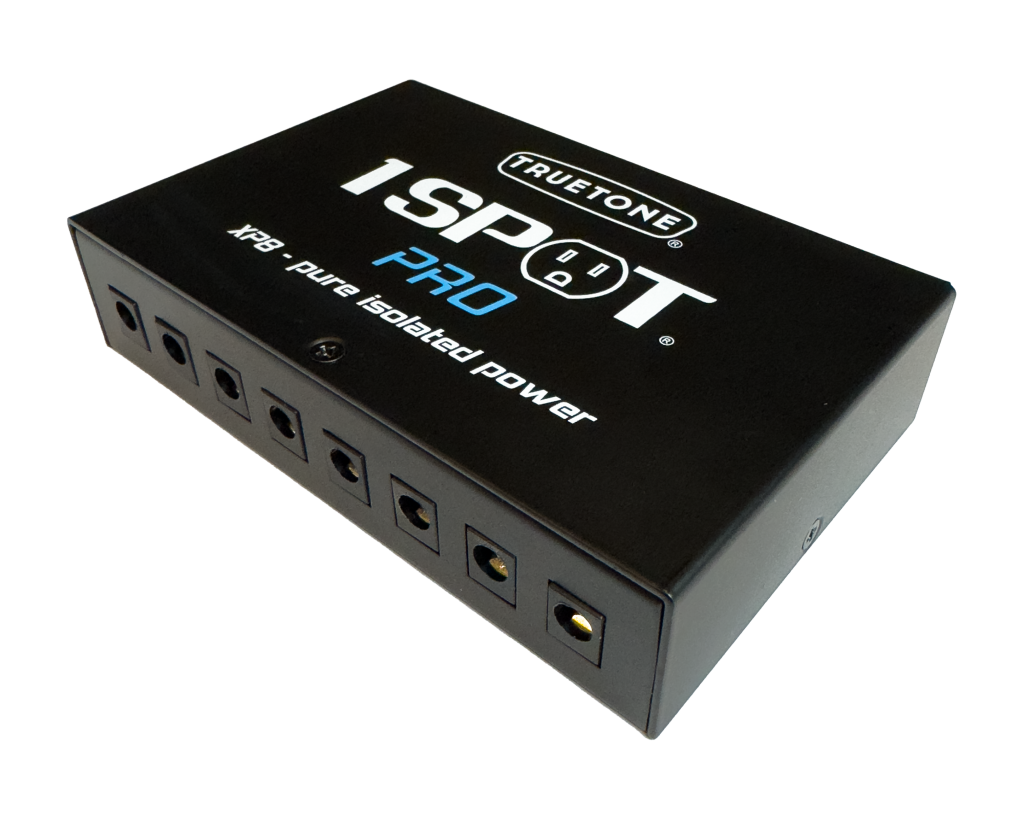

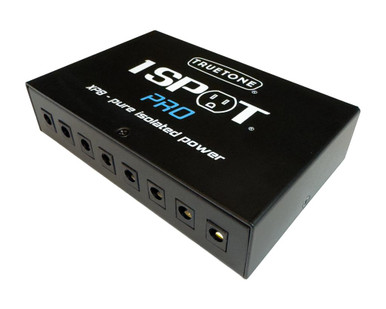

The 1 Spot Pro XP8-PS is just like the XP5-PS, except it has 8 outputs instead of 5. Each output provides 9Vdc of studio-clean power and can handle at least 500mA of current draw per output. Measuring 133x88x30mm (5.24×3.46×1.18”) and weighing only 459 grams (16.19oz or about 1lb), it can be easily attached to a pedalboard using only Vel-Cro. Because of its low profile, the XP8 can be mounted under most pedalboards, or be used as a pedal riser on top of a board. With 2 linked input jacks, you can power a second XP8 or XP5 by simply connecting a DC cable..
Specifications
- Dimensions: 133 x 88 x 30mm (5.24 x 3.46 x 1.18”); 488 grams (1.075 lbs.) – weight and dimensions of power supply only, not including cables or packaging.
- Input Voltage: 12Vdc 4.0A. External power supply (included with XP8-PS) must have a 5.5×2.1mm barrel plug, center pin positive. The XP8 is also designed to be powered directly from the output on the back of a 1 SPOT Pro CS11, provided the total current load connected to the XP8 is 2.5A or less.
Power cables (all are center pin negative polarity):
- (2) DC26 (5.5×2.1mm barrel plugs; 26” (660mm) – Purple
- (4) DC18 (5.5×2.1mm barrel plugs; 18” (457mm) – White
- (2) DC12 (5.5×2.1mm barrel plugs; 12” (305mm) – Yellow
- Output Voltage: All outputs are 9Vdc, 500mA.
