Voodoo Lab Pedal Power 4x4 Power Supply

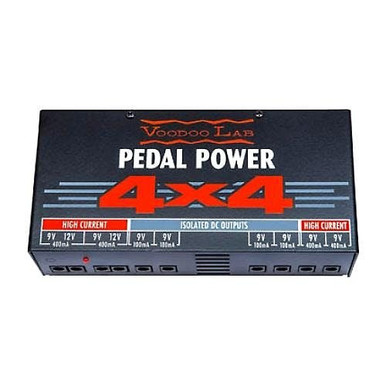

Voodoo Lab Pedal Power 4×4 Power Supply

£199.99

The Voodoo Lab Pedal Power 4×4 is a full featured pedalboard power supply that can even handle power hungry digital pedals like Eventides, TC NovasMounting Brackets for pedalboard sold separatelyFeaturesFour 9V isolated high-current 400mA output sections (2 with 12V option) power Strymon, Eventide,Line 6 (excludes M9/M13), Boss Twin, TC Electronic Nova and moreFour 9V isolated 100mA output sectionsAll outputs compatible with 9V battery operated pedalsLinear regulation and toroidal transformer for lowest possible noiseEasily fits small to large pedalboards and mounts under Pedaltrain productIncludes cables and detachable AC line cordEngineered and handmade in the USAHere's what Voodoo Lab say about the…

More Details

View more in
Tags: ,
View more by

Description

Guitars Pedals & Amps are pleased to introduce the Voodoo Lab Pedal Power 4×4 Power Supply available for delivery to all areas of the UK, Europe & everywhere else.

The Voodoo Lab Pedal Power 4×4 is a full featured pedalboard power supply that can even handle power hungry digital pedals like Eventides, TC Novas

Mounting Brackets for pedalboard sold separately

Features

  • Four 9V isolated high-current 400mA output sections (2 with 12V option) power Strymon, Eventide,
  • Line 6 (excludes M9/M13), Boss Twin, TC Electronic Nova and more
  • Four 9V isolated 100mA output sections
  • All outputs compatible with 9V battery operated pedals
  • Linear regulation and toroidal transformer for lowest possible noise
  • Easily fits small to large pedalboards and mounts under Pedaltrain product
  • Includes cables and detachable AC line cord
  • Engineered and handmade in the USA

Here's what Voodoo Lab say about the Pedal Power 4×4

Pedal Power 4×4 is a linear (analog) power supply that can properly power up to 4 digital power-hungry effects like those from Strymon, Eventide, Line 6, TC Electronic and more, plus 4 standard 9-volt battery stompboxes. Perfect for large pedalboards, Pedal Power 4×4 features 8 completely isolated, filtered, and regulated output sections that will keep your pedals dead quiet and free from high-frequency noise that occurs with digital "switching" power supplies.

Pedal Power 4×4 features an internal thermometer that controls a silent fan keeping the unit cool even under the most adverse heat conditions of outdoor festival stages. Even with poor AC line conditions, it delivers clean, consistent power. Handmade in the USA using the finest components, Pedal Power 4×4 was designed to meet and exceed the needs of our most demanding professional users.

Specification

Input

  • Standard IEC connector
  • 220-240V 50/60Hz (Europe/Australia model)

Outputs

  • 5.5×2.1mm barrel connectors center negative
  • Short circuit protected
  • Two 9V or 12VDC – 400mA
  • Two 9VDC – 400mA
  • Four 9VDC – 100mA

Included DC Power cables

  • 5.5×2.1mm right angle barrel connectors (6)
  • 5.5×2.1mm straight barrel connectors (2)
  • 5.5×2.5mm right angle "red" barrel (1)
  • 3.5mm right angle mini plug (1)
  • 9V battery snap (1)

Physical

  • 7" wide x 3.4" deep x 1.8" tall (186 x 86 x 44 mm)
  • Weight: 2 lbs. (0.9 kg)

Special

  • Toroidal power transformer
