Description
The Phaser Pedals department take a look at this New Phaser in , the Behringer BM-13 Phaser Pedal by Behringer is New, it is in stock at a great price and delivered to all areas of the UK. Read More for more product information, images, latest prices and how to order.

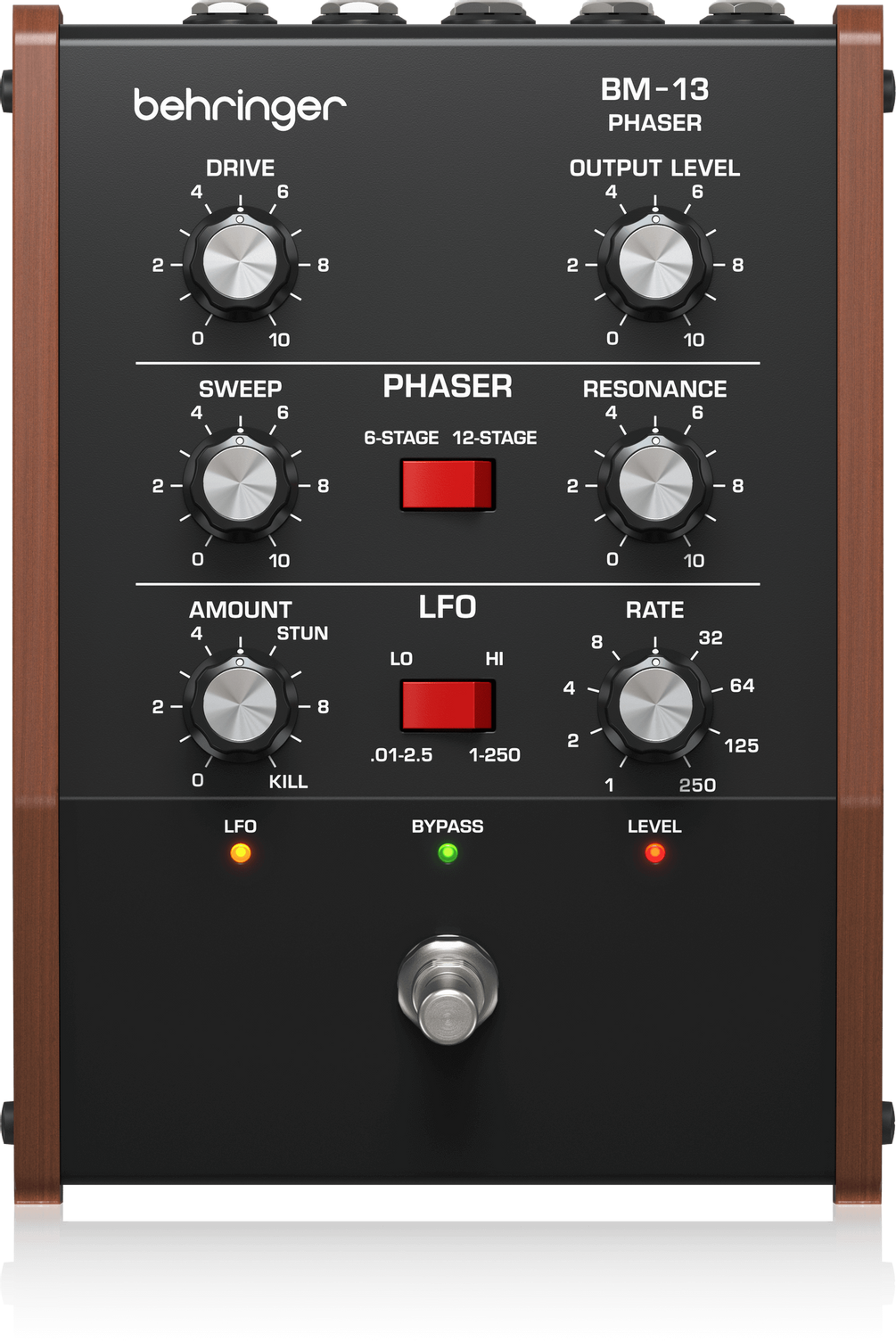

Based on one of the most unique and creative Phaser pedals of the ‘90s, the Behringer BM-13 is the ultimate tool for taking your sound to the next level with added depth, movement and dimension. Its switchable 6 or 12-stage design in combination with its versatile LFO controls ensures that this Phaser has everything covered from classic Phasers to Rotary-style sounds and even Ring-Mod-esque effects. With its thought-out I/O, drive and output control and timeless aesthetic, the Behringer BM-13 is perfect for guitars, synths and everything in-between and is built ready for the road.
Key Features
- Analogue Circuitry – Like the original, the Behringer BM-13 Phaser is an authentic recreation featuring analogue circuitry for a truly vintage voiced sound design workstation, built for the modern world.
- Classic Aesthetics – Constructed in a tried and tested roadworthy solid metal enclosure and beautifully finished with wooden side panels, the BM-13 is built to withstand life on the road.
- Modular Style I/O – This Phaser’s versatile I/O allows you to push your creativity to the limits by controlling each of its parameters via an external expression pedal, furthermore the BM-13 can be combined with other CV pedals and devices thanks to its Sweep in and LFO Out inputs.
Specifications
Audio Connections
- Audio in: Connector, 1 x 1/4″ TS, unbalanced
- Impedance: 1 MΩ
Audio out
- Connector: 1 x 1/4″ TS, unbalanced
- Output impedance: 6.8 kΩ
Aux out
- Connector: 1 x 1/4″ TS, unbalanced
- Output impedance: 6.8 kΩ
- Control Connections
Sweep
- Connector: 1 x 1/4″ TRS
- Impedance: 40 kΩ, unbalanced
- CV input range: 0 V to +10 V
Reso
- Connector: 1 x 1/4″ TRS
- Impedance: 50 kΩ, unbalanced
- CV input range: 0 V to +5 V
Rate
- Connector: 1 x 1/4″ TRS
- Impedance: 34 kΩ, unbalanced
- CV input range: 0 V to +5 V
Amount
- Connector: 1 x 1/4″ TRS
- Impedance: 40 kΩ, unbalanced
- CV input range: 0 V to +5 V
Sweep in
- Connector: 1 x 1/4″ TRS
- Impedance: 47 kΩ, unbalanced
- CV input range: ±2.5 V
FLO out
- Connector: 1 x 1/4″ TRS
- Output impedance: 2.2 kΩ, unbalanced
- CV input range: ±2.8 V
Controls
- Drive: 1 x rotary knob
- Output level: 1 x rotary knob
- Sweep: 1 x rotary knob
- 6-stage / 12-stage: 1 x rocker switch
- Resonance: 1 x rotary knob
- Amount: 1 x rotary knob
- Hi / lo: 1 x rocker switch
- Rate: 1 x rotary knob
- Bypass: 1 x footswitch
System
- Frequency response: 20 Hz to 20 kHz (+0 / -0.3 dB)
- Dynamic range: > 73 dB, 20 Hz to 20 kHz
- Signal-to-noise ratio: > 63 dB
- Overall gain: 22 dBu
Power Supply / Voltage
- Power input: Standard 9 V DC, centre negative, > 400 mA (power supply not included)
- Power consumption: 0.75 W
Dimensions / Weight
- Dimensions (H x W x D): 85.9 x 147.6 x 196.9 mm (3.38 x 5.81 x 7.75″)
- Weight: 1,047 g (36.9 oz)
