Description

The GPAS department take a look at this New , the Boss WL-20L Compact Wireless Guitar System by Boss is New, it is in stock at a great price and delivered to all areas of the UK. Read More for more product information, images, latest prices and how to order GPAS in the UK.

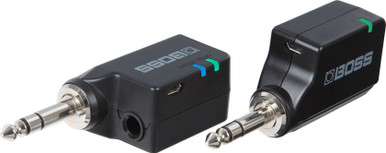

This is wireless systems made easy. Boss introduce the WL-20L, which you simply need to plug in and get playing. No frequency changing to do, just really simple, intuitive tech to give you peace of mind.

Key Features

• Plug-and-play wireless systems for guitar, bass, and other electronic instruments
• No complicated setup required—simply dock the transmitter and receiver together for about 10 seconds to set the optimum wireless connection
• Newly developed BOSS technology delivers premium audio performance with rock-solid stability, ultra-low latency (2.3 ms), and 50-foot/15-meter range (line-of-sight propagation)*
• Built-in rechargeable batteries provide up to 12 hours of continuous playing time**
• Simple charging with a standard USB adaptor (5 V/500 mA or greater)
• Cable tone simulation reproduces the natural capacitive effect of a 10-foot/3-meter guitar cable (WL-20 model only)
• Spare WL-T Transmitter available separately
• Compatible with active pickup bass and guitars

Reliable and quality audio

Extremely compact, the WL-20L fits snugly into your guitar out the way, not disrupting any playing comfort. Simply dock the transmitters to set up connection quickly and charge for up to 12 hours of playing time.

Don't expect any signal drop-outs as the Boss wireless system works in a 2.4 GHz frequency for great audio. Ultra-low latency also prevents a lag between playing and the amp producing the sound. The only difference between the WL-20 and the WL-20L is the lack of tone cable simulation, which is ideal anyway for acoustic guitars with a preamp on board, as the capacitance won't change the tone.

Included in the Box

• Owner's Manual
• Leaflet USING THE UNIT SAFELY
• Transmitter
• Micro USB cable for charging (Use a standard USB AC adaptor (5 V/over 0.5 A) for charging)

Specifications (RECEIVER)

• Wireless Format: BOSS proprietary digital audio format
• Wireless carrier frequency: 2.4 GHz
• Compatible Channels: 14 (May vary due to local conditions)
• Transmission Range: Up to 50 feet line-of-sight (May vary due to local conditions)
• Latency: 2.3 ms
• Dynamic Range: 110 dB or greater
• Frequency Response: 20 Hz–20 kHz
• Nominal Output Level: -10 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Indicators: POWER, RECEIVE
• Connectors: Output plug (1/4-inch TRS phone type), TRANSMITTER jack (1/4-inch TRS phone type), DC IN 5 V port (USB Micro-B type)
• Power Supply: Rechargeable lithium-ion battery, Supplied from the DC IN 5 V port
• Current Draw: During wireless operation – 60 mA, While charging – 500mA
• Battery charging time: Charging only the receiver – Approximately 3 hours, Charging simultaneously with the transmitter – Approximately 4 hours
• Expected battery life under continuous use: Approximately 10 hours

Size and Weight (RECEIVER)

• Width: 87 mm
• Depth: 25 mm
• Height: 38 mm
• Weight: 60 g

Technical Specifications (TRANSMITTER (WL-T))

• Nominal Input Level: -10 dBu (1 M ohm)
• Indicator: BATTERY
• Connectors: Input plug (1/4-inch TRS phone type), DC IN 5 V port (USB Micro-B type)
• Power Supply: Rechargeable lithium-ion battery, Supplied from the DC IN 5 V port
• Current Draw: 350mA
• Battery charging time: Approximately 3 hours
• Expected battery life under continuous use: Approximately 12 hours

Size and Weight (TRANSMITTER (WL-T))

• Width: 87 mm
• Depth: 22 mm
• Height: 36 mm
• Weight: 43
