Description
The Guitar Effects Pedals department take a look at this New Pedal in , the Morningstar ML5R Reorderable Loop Switcher by Morningstar is New, it is in stock at a great price and delivered to all areas of the UK. Read More for more product information, images, latest prices and how to order.
Here’s what Morningstar say:

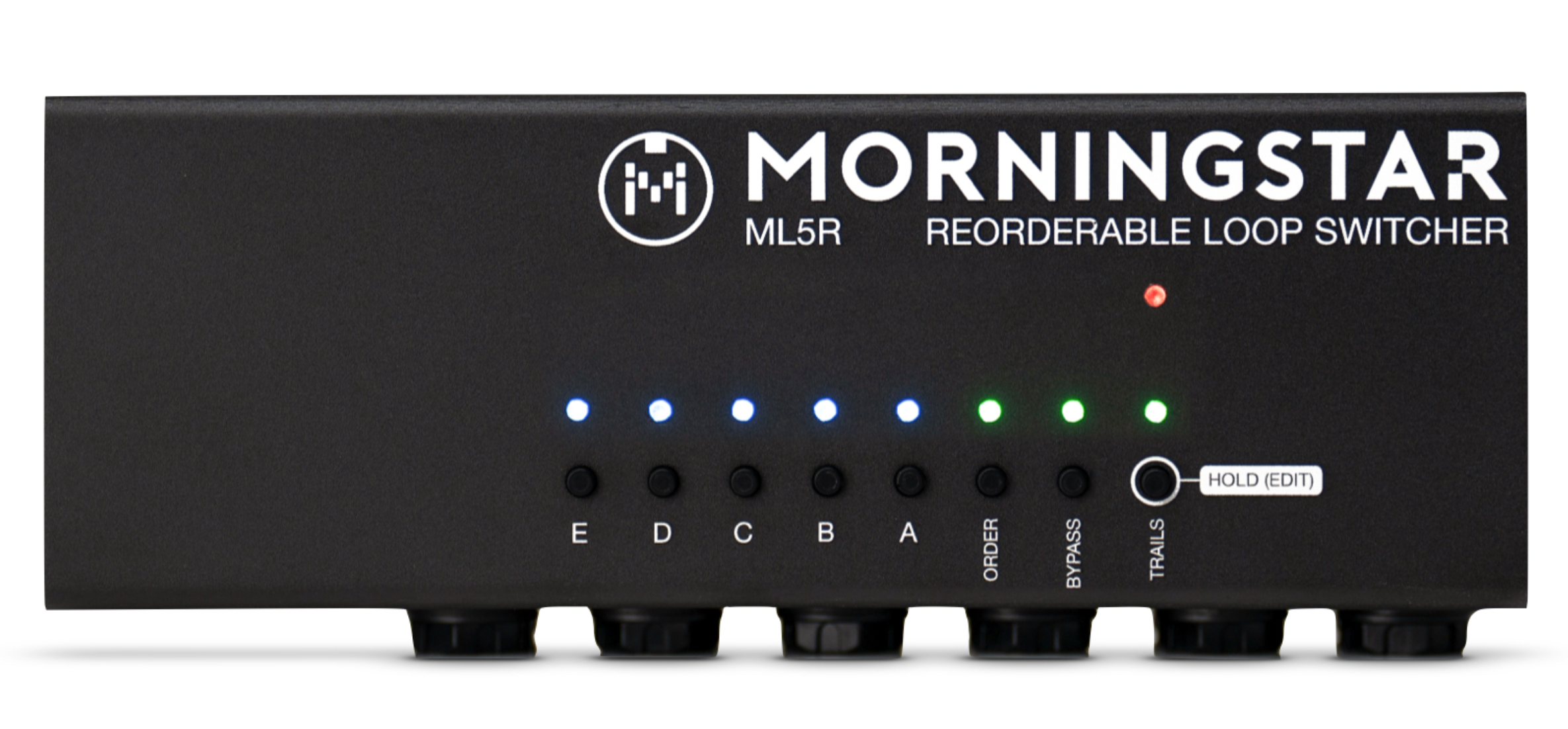

ML5R is a reorderable loop switcher that redefines your approach to audio effects. Experience entirely new sounds from your existing effects – just by switching up their order. Its sleek, intuitive interface enables you to switch the order of your effects quickly, whenever you want.
No Editor Required
Everything you can do on ML5R, you can do on ML5R. Set loop Order, Bypass and Trails with just a few simple switch presses.
Set Order
Simply press the loop buttons in your desired order, and the effect loops will be arranged accordingly. In the example below, the order is B > A > D > C > E.
Set Bypass
Select the loops that you want engaged when you recall an ML5R preset. Bypassed loops can be engaged individually after a preset has been recalled.
Set Trails
Enable spillover trails for your desired loop.
Save
Save your custom loop order, bypass states and trails as a preset in any of the 128 user slots. Simply send ML5R a Program Change message from 0 to 127 to recall your desired presets.
Full MIDI Capabilities
Scroll through presets, toggle individual loops on/off, rearrange loop order, control master mute and more. Take full control of ML5R with your MIDI controller.
If you use a Morningstar MIDI controller, a dedicated ML5R message type allows quick and easy access to all functions without needing to refer to any MIDI chart.
Specifications
- Dimensions: 169 x 58 x 58 mm, 400g
- Memory: No. of presets: 128
- I/O Ports (buffered)
- 1x Audio In
- 1x Audio Out
- 5x Sends (mono)
- 5x Returns (mono)
- 1x 5-pin MIDI In
- 1x 5-pin MIDI Thru
- Impedance
- Input/Returns: 1M ohm
- Output/Sends: Approx 100 ohm
- Power Requirements: 9-18V DC center negative
Minimum 160mA
