Description
The Boss Guitar Pedals always come out on top. This is New is in stock and ready to post out to you, with fast, reliable delivery straight to your door. For more New Guitar Pedals options, read on for full specifications, demos, and secure online ordering.

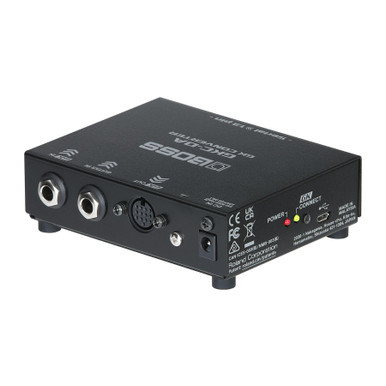

The latest Boss guitar synthesizer products feature the Serial GK digital interface, a newly-developed connection method that delivers evolved performance over the analogue 13-pin GK interface used in earlier Boss and Roland guitar synth and modelling products. The GKC-DA GK Converter allows you to drive a 13-pin GK device such as the Boss SY-1000 or GP-10 using the Serial GK output on a GK-5 or GK-5B Divided Pickup or the GM-800 Guitar Synthesizer.
Key Features
- Converts the Serial GK digital interface to the classic 13-pin analogue GK interface.
- Serial GK input and 13-pin GK output.
- Instrument input for passing normal guitar/bass pickup sounds to the 13-pin output.
- Compact and rugged metal design.
Specifications
- Nominal Input Level: -10 dBu (GUITAR IN)
- Maximum Input Level: +16 dBu (GUITAR IN)
- Input Impedance: 1 M ohm (GUITAR IN)
- Current Draw: 390 mA
- Power Supply: AC Adaptor
Connectors
- GK IN Jack: 1/4-inch TRS Phone Type (for BGK Cable Only)
- GK OUT Connector: 13 Pins DIN Type
- GUITAR IN Jack: 1/4-inch Phone Type
- DC IN Jack
- USB Port: USB Micro-B (Program Update Only)
Weight & Dimensions
- Weight: 340 g / 12 oz
- Dimensions (W x D x H): 115 x 92 x 36 mm / 4.528 x 3.622 x 1.417 inches
Accessories (Included)
- AC Adaptor
- Owner’s Manual
- Leaflet (Using the Unit Safely)
Options (Sold Separately)
- Serial GK Cable: BGK-15, BGK-30
