Description

The Diamond Guitar Pedals always come out on top. This is New is in stock and ready to post out to you, with fast, reliable delivery straight to your door. For more New Guitar Pedals options, read on for full specifications, demos, and secure online ordering.

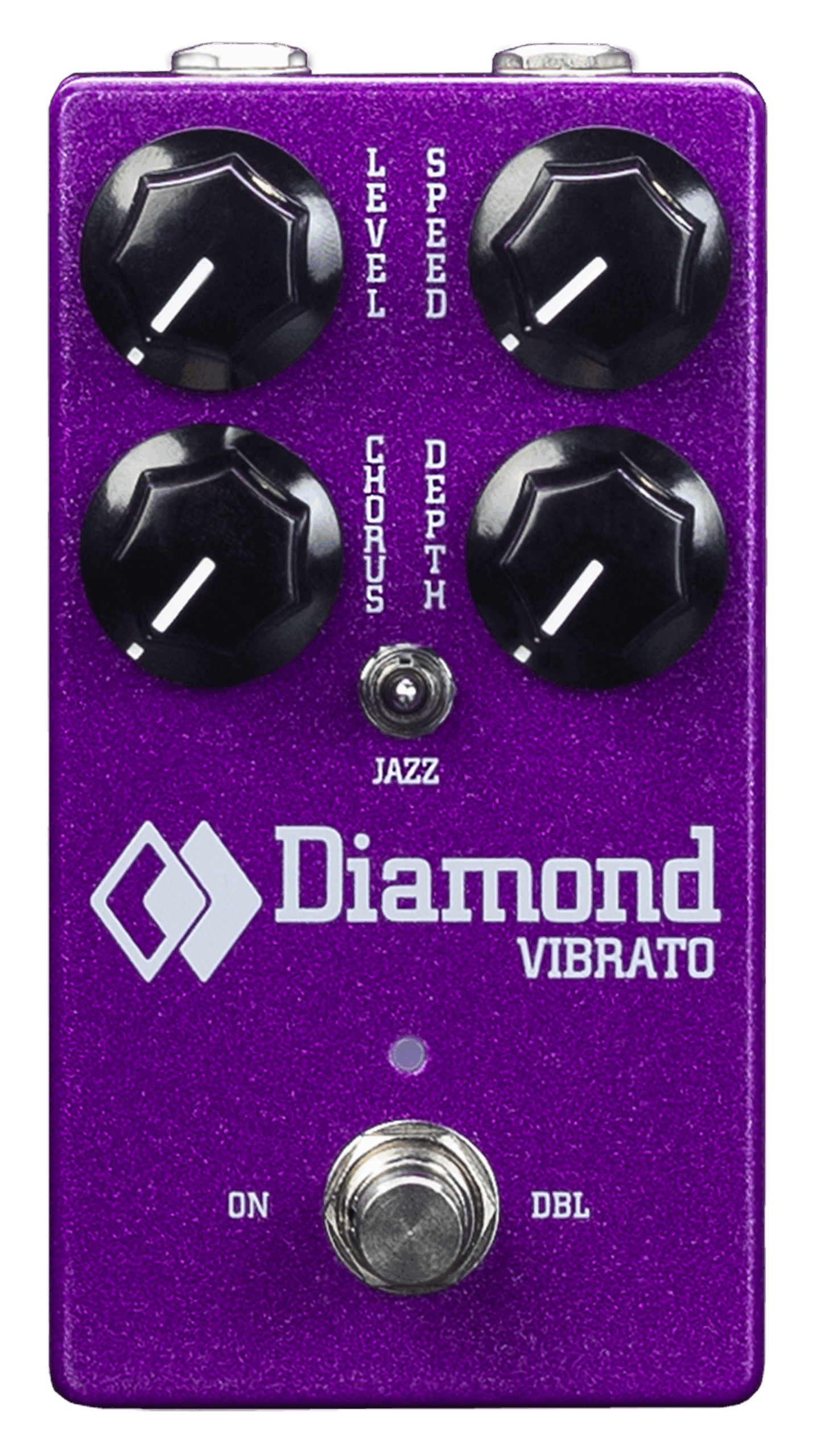

Here’s what Diamond say about the Diamond Vibrato Analog Bucket-Brigade Vibrato Pedal:

“The original Diamond VIBRATO was conceived in late 2006 with a simple yet ambitious idea: crafting an analog, true-pitch Vibrato pedal, built around the revered MN3007 bucket brigade chip and promptly became one of the world’s most coveted and sought-after Vibrato pedals.

Now, nearly two decades later, the new Diamond VIBRATO is not only back – it’s better than ever. This latest and greatest version of the VIBRATO incorporates decades-worth of end-user feedback, better tech, maximum efficiency, modern features, a meticulous redesign for enhanced player experience and the signature Diamond quality that made the original pedal so great.

This reinvented and coveted classic is now available in an updated, compact package, plus the first run of 800 pedals is equipped with NOS Panasonic MN3007 BBDs.”

Key Features

• Vibrato Effects Pedal
• All-analog bucket brigade circuitry
• Sound and character of the original paired with improved modern features
• Updated Compandor design for increased clarity, less distortion and lower noise floor
• Legendary MN3007 Bucket Brigade Delay chip – Using original NOS Panasonic BBDs in first run of 800 pcs.
• Variable chorus control for blending dry and wet signals
• Standardized negative-center 9-18 V DC input with polarity and over-voltage protection – for more headroom at 18V or added colour and warble at 9V input voltage
• Tone-shaping jazz switch
• Momentary or latching speed doubler – doubles the set speed of the Vibrato
• Wide speed range going from 0.1 Hz to 20 Hz
• Pedalboard-friendly enclosure with top-mounted jacks for ease of pedalboard use
• Soft touch relay-based true bypass switching
• Hand-made in Montreal, Canada
• Powered by a regular (opt.) 9-18 V DC PSU (centre -, 2,1 mm, ~45 mA current draw)

Half the Size, All the Sound

Don’t let the size cause you to underestimate the power packed within. We’ve managed to stuff all the VIBRATO’s analog audio path, Compandor and BBD Delay circuits in pedalboard-friendly sized enclosure. By using dual stacked PCB’s, we’ve not only optimized space but also enhanced the isolation of the audio path from the power and switching circuits. Add top jacks, soft-touch True Bypass switching, and standardized negative-center 9-18 V DC input with polarity and over-voltage protection for a bulletproof pedal ready for any gig.

Analogue BBD Line

At the heart of this pedal lies the revered MN3007 Bucket Brigade Delay chip, renowned for its ability to create the rich, organic, and warbling Vibrato & Chorus tones which make the sounds of the 70s and 80s guitar icons. The MN3007 infuses its signature character to your guitar signal—delivering a natural, liquid-like pitch modulation with a rounded vintage texture and mojo that is missing from modern digital counterparts.

Commander Magic

Our Compandor Circuit adds warmth and complexity by controlling your dynamics. Acting as both a compressor and expander, it not only gives the VIBRATO its signature feel and response but also reduces much of the noise inherently found in BBD technology. Borrowed from the Memory Lane Jr., the updated compandor design in the VIBRATO provides increased clarity, less distortion and is pre-trimmed therefore will never have to be recalibrated.

Input

While the original VIBRATO could only be powered by an 18VDC reverse polarity power supply (internally regulated to 15VDC) – the new VIBRATO offers a much more versatile 9-18VDC operating range. The voltage is internally regulated based on the power input and as a result, the pedal will sound slightly different depending on operating voltage as the clock frequency will shift.

For classic, pristine and lush Diamond VIBRATO tones with added headroom, power the pedal at 18VDC like the original. Powering it at 9VDC will add a bit more color and warble – much like the “High Mode” in the original big-box VIBRATO. You can take advantage of the added range or just dial back the depth. Better yet, grab a Cioks power supply and try it at 12VDC or 15VDC regardless of what you settle on, the Diamond VIBRATO will sound great! As always, we recommend using a good quality, isolated power supply.

Related Stuff:

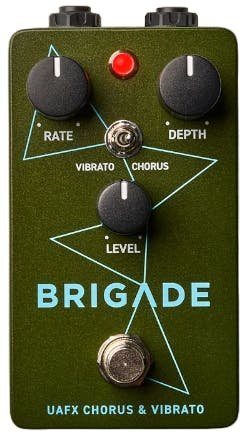

TC Electronic Bucket Brigade Analogue Delay Pedal Asheville Music Tools ACV-1 Analog Chorus / Vibrato Pedal Universal Audio UAFX Brigade Chorus and Vibrato Pedal Diamond Memory Lane STM32 Digital Bucket-Brigade-Style Delay Pedal
