Description

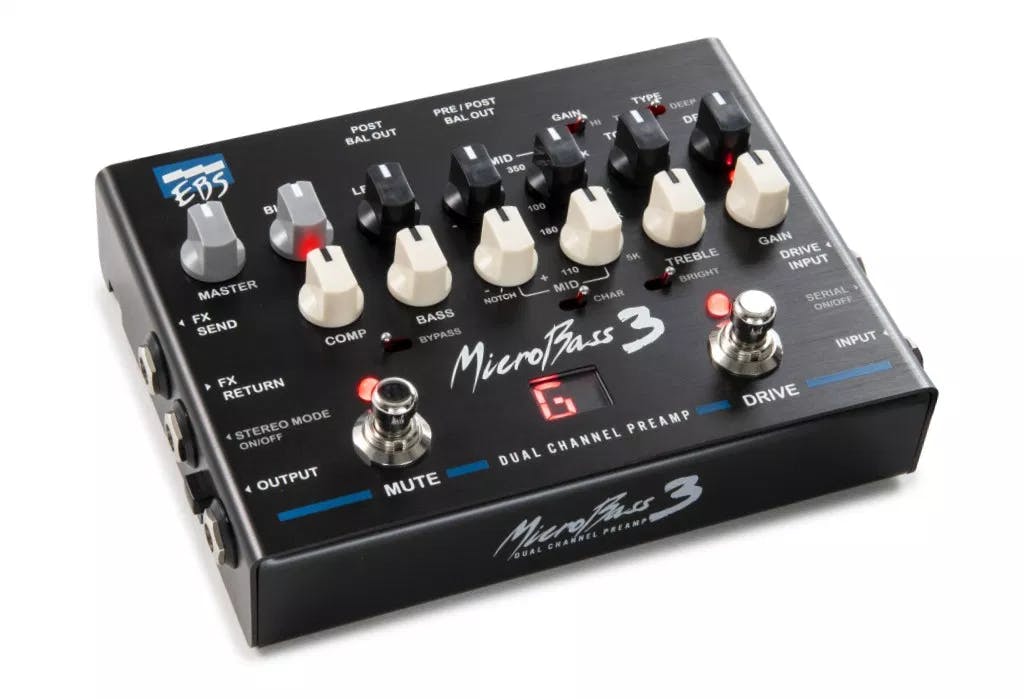

EBS will not fail to impress. The EBS Micro Bass 3 Preamp / DI Box in Guitar Pedals is New, in stock, and ready to ship with fast, reliable delivery across the UK, Ireland, and Europe. For more details within Guitar Pedals, additional Preamp Pedals options, full specifications, demos, images, videos, and secure online ordering, read on below.
The EBS-MB3 is a preamp with two channels, produced using high-end materials and parts. You’ll have plenty of headroom to play with as the preamp works at a signal level that is equal to a pro mixing console. This higher signal means you can use it as a preamp alongside any type of standard power amp.
Useful Built-In Tools
A number of in-built features separate the EBS-MB3 from the rest. The two contrasting channels (drive and clean) can be used either parallel or in series. The dual balanced XLR-Outputs can tap the signal post and pre-EQ simultaneously, while 10 M Ohms of Input Impedance let it handle absolutely any kind of bass. An onboard tuner means you can tune without needing another device. This is a seriously versatile piece of kit!
Features
- Professional, Analogue Preamp
- Dual Channels (Overdrive & Clean)
- Blend Control (for Drive)
- Run Either in Parallel or Series
- Dual Balanced XLR-Out (Pre & Post EQ or Stereo)
- Effects Loop (Mono or Stereo) – Running in Stereo Mode the Balanced Outputs Become Left & Right Output
- Character and Bright Filters (Clean Channel)
- HI or LO Gain Drive Engines
- Thin or Deep Type (Drive Channel)
- Onboard Compressor
- Tuner, Aux Input
- Headphones Out
- 10 M Ohms Input Impedance
- 9V DC, 450 mA Required (Power Supply is Included)
Specifications
General:
- Weight: 660g (1.5lbs)
- Dimensions (W x D x H): 6.6" x 4.9" x 2.1"
Aux Info:
- Power Requirements: Idle 450mA @9V. Max 750mA @ 9V (with Headphones at Max Output Level
Balanced Outputs:
- Options: Pre/Post EQ, L/R Channel in Stereo Mode
- XLR Connections: 1-GND, 2-Hot, 3-Cold
- Output Level: Nominal -20dBv
Output:
- Output Impedance: <1 k Ohms
- Signal Level: Nominal 0 dBv
Aux Input:
- Input Impedance: 20 k Ohms
- Nominal Level: -10 dBv
Phones Out:
- Recommended Impedance: 32 – 200 Ohms
Effects Loop:
- Input Impedance: > 200 k Ohms // 22 pF
- Output Impedance: < 100 Ohms
- Gain: Unity (1:1)
- Loop Signal Level: Nominal -10 dBv
Drive Channel:
- Input: Input Impedance 1.8 M Ohms // 22 pF
- Drive: Gain Range 40 dB
- Engines: Lo: Type 2nd Harmonics Soft, Hi: Type Symmetrical 2-Stage with +18 dB Gain
- Type: Thin/Normal/Deep Pre-Drive EQ
- Filter Section: Tone Filter: Type 6 dB/Oct. Low Pass. Frequency Range 700-20k Hz. Middle Filter: Type Bandpass Filter. Frequency Range 100 – 4.500 Hz. Q 1.2, Gain Range +/- 15 dB
Clean Channel:
- Input Impedance: Parallel Mode 1.5 M Ohms // 44 pF, Serial Mode 10 M Ohms // 22 pF
- Gain: Gain Range min/max -00/ +30 dB, Gain Peak LED +10 dBv, Frequency Response +0 / -3 dB 20 – 20.000 Hz
Character:
- Filter Type: Shelving High/Low Pass
- Gain: Lo +6 dB @ 80 Hz, Mid -2 dB @ 900 Hz, Hi +3 dB @ 7.5 kHz
Bright:
- Filter Type Shelving: Gain +10 dB @ 10 kHz
Filter Section:
- Bass Filter: Type 12 dB/oct. Shelving. Gain Range +/- 18 dB @ 60 Hz
- Middle Filter: Type Bandpass Filter. Freq Range 50 – 5.000 Hz. Q -Boost 0.5 – 1.3, Q – Cut 0.5 >5. Gain Range +/- 12-15 dB
- Treble Filter: Type Shelving. Gain Range +/- 18 dB @ 8 kHz
- Comp/Limit: Comp Gain 0 Db. Attenuation Max 24 dB, Compression Ratio Max 3:1, Attack (80%) typ <10 ms, Release (80%) typ 100 ms
