Name: Electrovoice EKX12 Passive 12" Full Range Cab
Brand: Electrovoice
SKU: EKX12
Availability: InStock

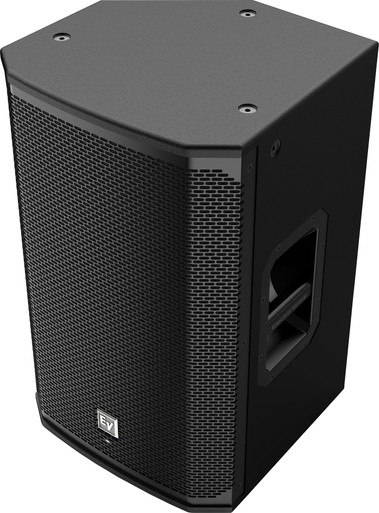

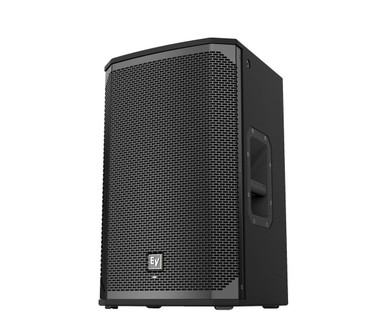

Electrovoice EKX12 Passive 12″ Full Range Cab

£545.00

The EKX series combines legendary EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications. The EKX series is positioned above the ZLX and ELX series and below the ETX series. Key Features EKX-12: 1400 […]

View more in Speaker Cabinets

Tags: Cabinet

View more by Electrovoice

As an affiliate partner, we may earn a small commission when you buy through our links — at no extra cost to you.

Description

Key Features

EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
Eight M10 threaded mounting points, aluminium pole mounts, and all-metal handles.
90 x 60 pattern for best coverage on mid-size stages. 40 monitor angle with rubber feet.

Easy to use

The EKX Series features QuickSmartDSP, EV’s signature single-knob user interface, and intuitive menu navigation via LCD. Setting up for a gig is simple, thanks to the speaker's 4 setup presets for Music, Live, Speech or Club settings. If you need to dig deeper, there's a 3-band EQ and 5 user programmable presets so that you can quickly recall your personal settings for a particular gig or performance.

EV-patented Signal Synchronized Transducers™ (SST) waveguide design on full-range models provides precise and consistent coverage.
Ideal for portable and installed applications. Lightweight, compact 15-mm wood enclosures with internal bracing, durable EVCoat finish, eight M10 threaded mounting points (full-range models), aluminium pole-mounts, and all-metal handles.

Specifications

Frequency Range (-10 dB): 55 Hz – 20 kkHz (Full Space Measurement)
Suspension: (8) M10 threaded mounting points
Minimum Impedance: 7.5Ω
HF Transducer: DH-1M 1-inch titanium compression driver
Speaker Type: Full-Range, two-way
Woofer Size: 12inch
Powered or Passive: Passive
Frequency Response (-3 dB)¹: 82 Hz – 18 kHz (Full Space Measurement)
Max. SPL/1m (calc)²: 131dB
Coverage (Nominal -6 dB) H: 90°
LF Transducer: EVS-12M 300 mm (12 in)
Power Rating: 1400W
Crossover Frequency: 1.6 kHz
Connector Type: Dual NL4
Enclosure Material: 15 mm, plywood with EVCoat
Grille: 18 AWG steel with powdercoat
Height: 23.9" (607mm)
Recommended High-Pass Frequency: 55Hz
Width: 14.76" (375mm)
Depth: 14.02" (356mm)
Weight Net: 38.36lbs (17.4kg)
