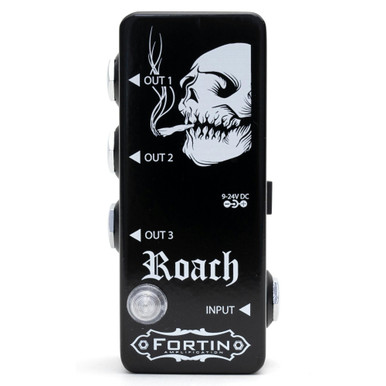

Fortin Amplification Roach 3-Way Buffered Splitter Pedal

£129.99

The Fortin Guitar Pedals always come out on top. This is New is in stock and ready to post out to you, with fast, reliable delivery straight to your door. For more New Guitar Pedals options, read on for full specifications, demos, and secure online ordering. About Fortin Amplification Fortin Amplification is a familiar name among guitarists that really "know" about tone. Alongside its custom handbuilt amp offerings, the company also produces a number of premium guitar pedals using only the finest components available. Here's what Fortin Amplification says about the Roach 3-Way Splitter Pedal: The ROACH is a mini sized…

Read More

View more in
Tags: ,
View more by

As an affiliate partner, we may earn a small commission when you buy through our links — at no extra cost to you.


Description

The Fortin Guitar Pedals always come out on top. This is New is in stock and ready to post out to you, with fast, reliable delivery straight to your door. For more New Guitar Pedals options, read on for full specifications, demos, and secure online ordering.

About Fortin Amplification

Fortin Amplification is a familiar name among guitarists that really "know" about tone. Alongside its custom handbuilt amp offerings, the company also produces a number of premium guitar pedals using only the finest components available.

Here's what Fortin Amplification says about the Roach 3-Way Splitter Pedal:

The ROACH is a mini sized 3-way splitter discrete Class-A buffered outputs. Due to its size, only powers via the DC inlet and has a  wide acceptance, 9-24vdc. MOSFET input protects if the wrong orientation adaptor is connected, no more damage internally. LED is clear high-bright green. Proudly made in North America.

Specifications

  • Pedal size (W/D/H): 3.642″(92.51mm) x 1.516″(38.51mm) X 1.220″(30.99mm)
  • Shipping Weight: 250g
  • DC Adapter (not included): 9-24VDC, Center Pin Negative (Regulated)
  • Power supply only, no battery operation
  • Current draw: @9VDC ~ 4mA
  • Input ~1M / Output ~10K min. load
  • Frequency response: 20hz to 20khz
  • Max output: +9dBm(9VDC), +18dBm(24VDC)
