HERE'S WHAT HH ELECTRONICS SAY ABOUT THE TNA-1800S:

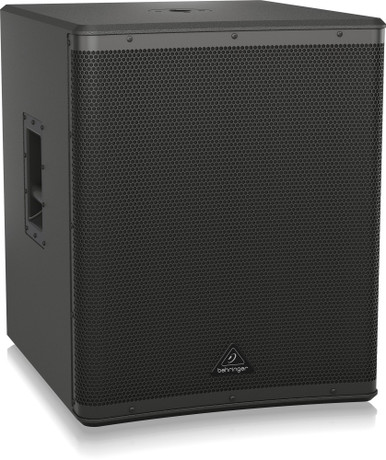

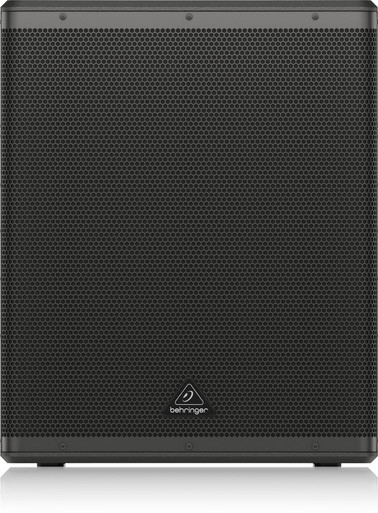

The TNA-1800S passive line array subwoofer features a high power 18" low frequency woofer with exceptional high output. Equipped with integrated rigging hardware, the TNA-1800S can be installed quickly and easily. The TNA-1800S offers a max SPL of 127 dB and offers a frequency response as low as 32Hz. When combined with the TNA-2051 and TNA-1200S, the TNA-1800S offers an ideal venue installation or point source solution. Ideal for venues, schools, sports, gyms, hotels and more.
SPECIFICATIONS:
- Frequency Response (-10) 30Hz – 1kHz
- Frequency Response (-3) 40Hz – 500Hz
- Power 500W AES, 2000W Peak
- Sensitivity (1W/1M) 102 dB
- Max SPL (1M) (Peak) 135 dB
- Nominal System Impedance 4 Ohm
- Input Connector NL4 ±1 Twist Lock Connector
- Link Connector NL4 ±1 Twist Lock Connector
- LF Driver 1 x 18 Inch High sensitivity HH designed driver
- Cabinet 15mm Plywood
- Finish Painted Black (White finish optional, subject to MOQ)
- Mounting Points 6x M10 Penn Elcom tie-down/flying points & M20 Threaded Pole Mount
- Grille 1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined
- Unit Dimensions (Hwd) 556 x 600 x 641mm, 21.9" x 23.6" x 25.2"
- Unit Weight 34.38Kg, 75.8 lbs
- Carton Dimensions (Hwd) 660 x 695 x 730mm, 26" x 27.4" x 28.7"
- Packed Weight 42Kg, 92.6 lbs
