Description
The Stoll Guitar Pedals always come out on top. This is New is in stock and ready to post out to you, with fast, reliable delivery straight to your door. For more New Guitar Pedals options, read on for full specifications, demos, and secure online ordering.

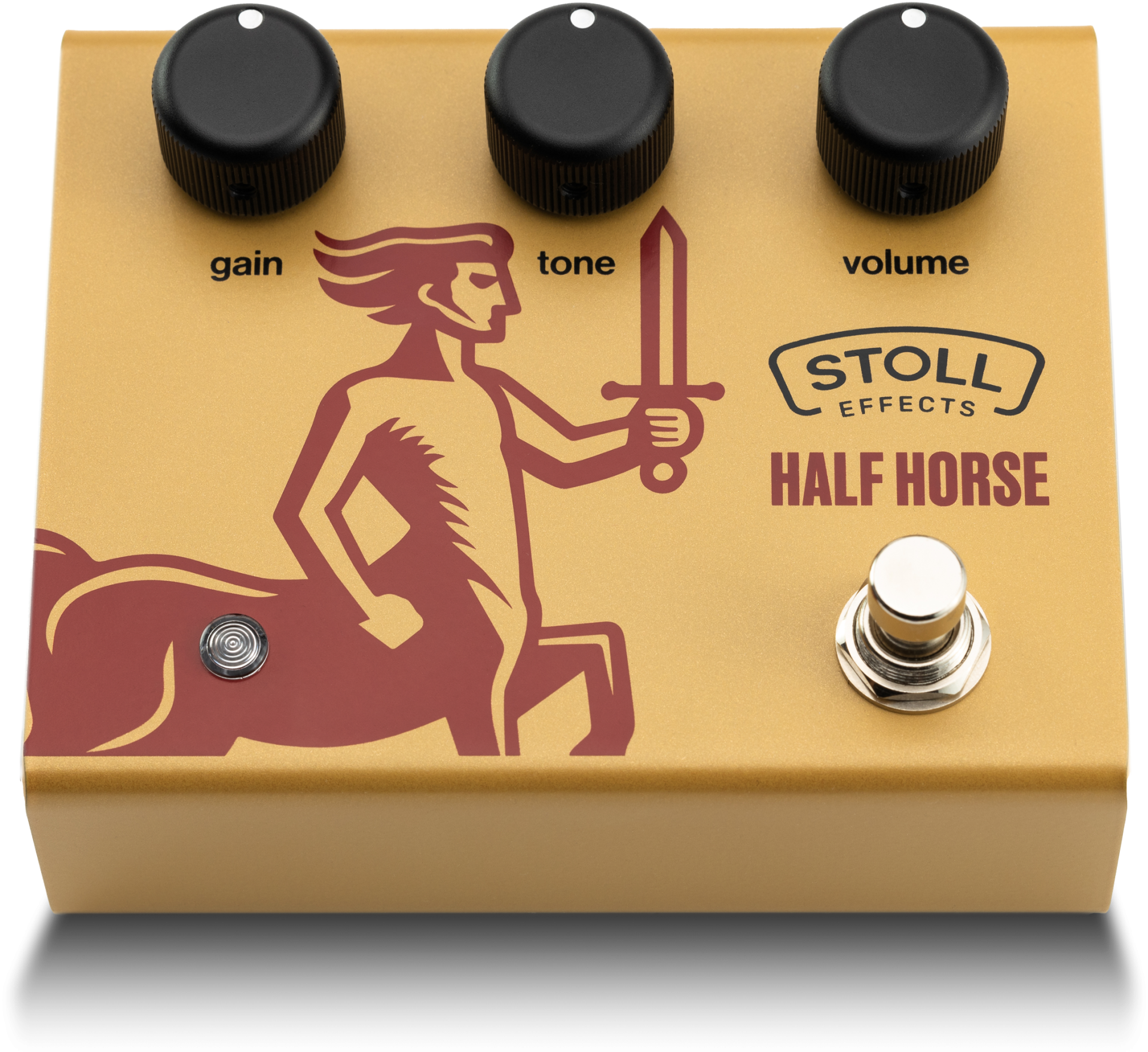

The Half Horse is a versatile overdrive pedal that combines classic tones with modern flexibility. It delivers smooth, musical distortion, with a focus on the midrange, giving your sound presence and warmth.
Gain
The Gain Stage is driven by two NOS Germanium diodes, enabling a range from soft to hard clipping. Start at 7 o’clock and gradually turn it clockwise to find the gain level you prefer.
Tone
The tone control is active. It cuts or boosts frequencies above 400 Hz. Start at 12 o’clock for a neutral setting. Turn clockwise to boost or counterclockwise to attenuate.
Volume
As simple as it sounds, the volume pot will level the output signal. Start at 12 o’clock and find the right volume that fits your setup. You can also try using the pedal as a boost with the gain level set to zero.
In this fully analog circuit, each knob has a unique effect on the sound, and the way they interact with each other provides a multitude of possibilities for tone shaping. By adjusting the different knobs, you can explore a wide rang of sounds until you find the one that matches your preferences. Don’t hesitate to experiment and try different combinations, as it can lead to exciting results. Also make sure to check our website for demonstration videos.
Mode Switch
CL mode
The classic mode delivers a familiar, balanced overdrive sound, perfect for vintage enthusiasts and guitarists who appreciate a smooth, dynamic tone. Switching the pedal on will light up the LED in red.
SE mode
This modification provides more volume and added punch without altering the core character of the pedal. Switching the pedal on will light up the LED in blue.
The switch circuit is not designed to be used while playing. You may hear a ‘plop’ when using the slide switch. It is better to use the switch while the pedal is in bypass mode.
Power
Please use only a standard pedal power supply with a center negative polarity. You must plug in a cable to activate the pedal.
It is recommended to use grounded power supplies to prevent hum. Likewise, the analog pedal should not be used with digital pedals in a daisy-chain setup. When connecting through a mixer, audio interface, or PC, ground loops may occur, which could require a non-grounded power supply.
technical data
Specifications
- True Bypass Yes
- Switch Typ Soft Switch momentary
- Length 113mm
- Width 92mm (96mm incl. jacks)
- Height 36mm (54mm incl. footswitch)
- Weight 630g
- Voltage 9V DC (center-negative)
- Current 140mA (9V only)
- Power supply included No
- Battery compartment No
- RoHS Compliant CE (EU) Compliant
- Designed and assembled in Germany
