The Truetone Guitar Pedals always come out on top. This is New is in stock and ready to post out to you, with fast, reliable delivery straight to your door. For more New Guitar Pedals options, read on for full specifications, demos, and secure online ordering.

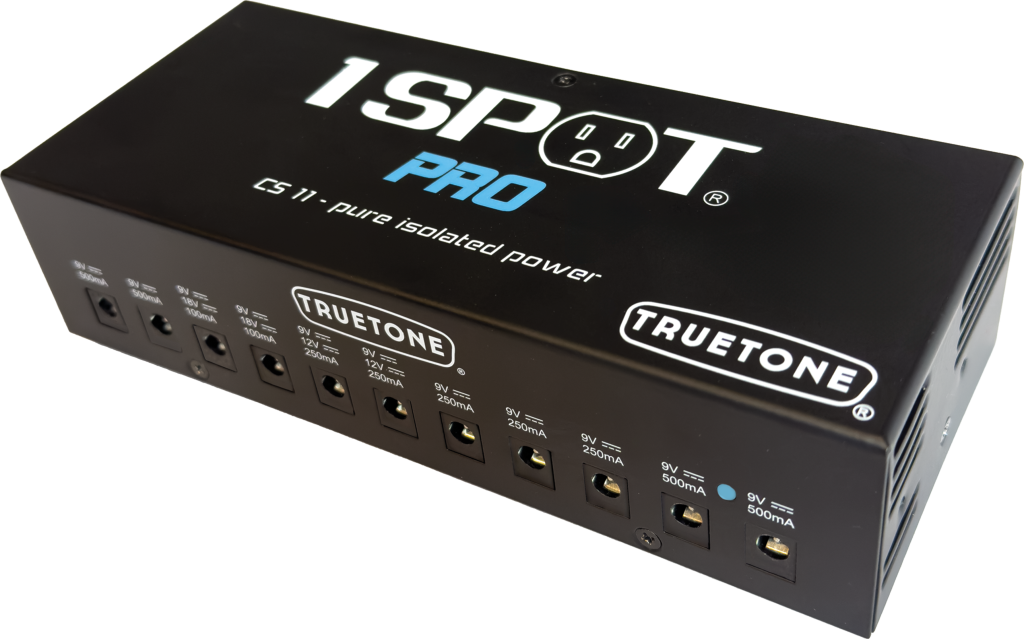

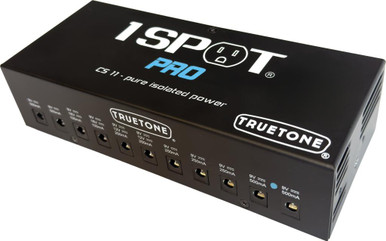

The 1 Spot Pro CS11 is the same size as the CS12, but with all new outputs and options. It doesn’t replace the CS12, but gives users more power and more available 9Vdc outputs. It also has “one more” output on the back, which allows users to connect the CS11 to Truetone’s new expansion boxes like the XP5 and XP8. It goes to 11… and so much more.
Specifications
- Dimensions: 205 x 86 x 50mm (8.07 x 3.38 x 1.97”); 971 grams (2.14 lbs.) – weight and dimensions of power supply only, not including cables or packaging.
- Input Voltage: The 1 SPOT Pro CS11 can be used anywhere in the world without the use of a step-up or step-down transformer. Like our 1 SPOT, it transforms wall voltage from 100-240Vac, and converts it into the stated voltages on the bottom of the unit.
Included Cables:
The 1 SPOT Pro CS11 includes a generous assortment of cables and converter plugs. The cables are of various lengths, color-coded for easy cable management and with right angle plugs on the pedal end.
Power cables (all are center pin negative polarity):
- (2) DC26 (5.5×2.1mm barrel plugs; 26” (660mm) – Purple
- (2) DC22 (5.5×2.1mm barrel plugs; 22” (559mm) – Blue
- (4) DC18 (5.5×2.1mm barrel plugs; 18” (457mm) – White
- (3) DC12 (5.5×2.1mm barrel plugs; 12” (305mm) – Yellow
- (1) MC2 Two 5.5×2.1mm barrel plugs with 5.5×2.1mm input socket.
Converter Plugs:
- (1) CL6 – (5.5×2.1mm barrel input, 5.5×2.5 barrel output; reverse polarity) Green – for Line 6 DL4/M9/etc. and some Eventide pedals.
- (1) CYR – (5.5×2.1mm barrel input, 5.5×2.1 barrel output; reverse polarity) Red – reverse polarity converter
- (1) C35 – (5.5×2.1mm barrel input, 3.5mm male output; tip positive) Black – 3.5mm (1/8”) plug converter
- (1) CBAT – (5.5×2.1mm barrel input, Black battery clip output) Connects to battery clip wires inside pedals that do not have DC jacks. Do NOT connect to a battery!
- (1) C2.5 – Gray – 5.5×2.5mm plug converter – can be used for Line 6 HX series and POD Go
Availiable Output Volatages
- Outputs 1-2, 10-11: 9VDC (500mA)
- Outputs 3-4: 9VDC or 18VDC (100mA)
- Outputs 5-6: 9VDC or 12VDC (250mA)
- Outputs 7-9: 9VDC (250mA)
