Description

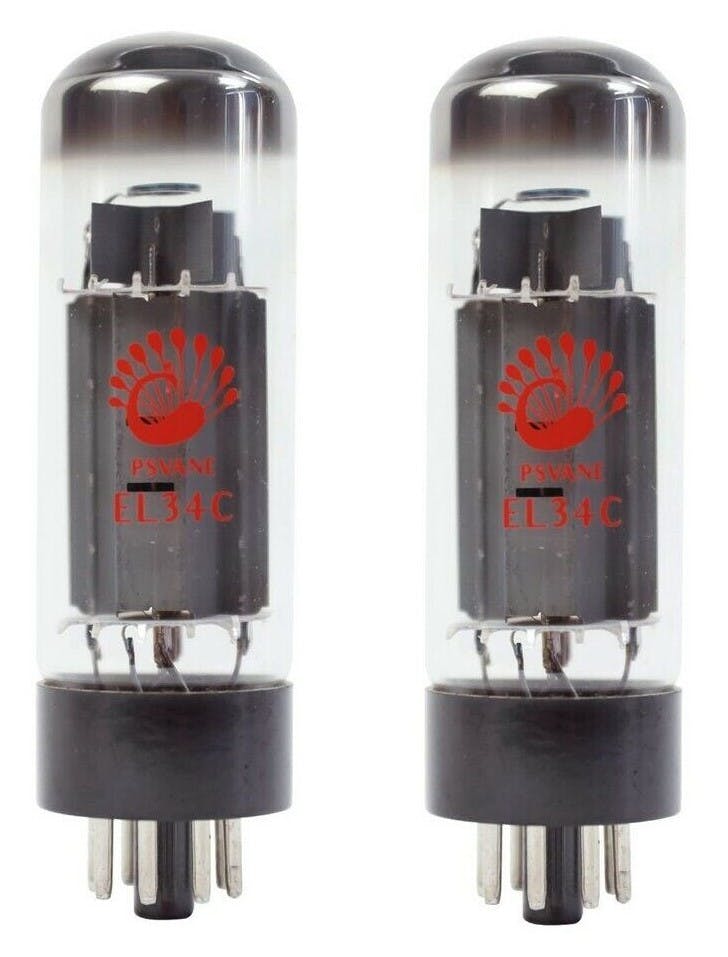

Guitars Pedals Amps & Stuff are excited this week as the almighty PSVANE EL34C Matched Pair of Valve Tubes is in stock. The PSVANE range of Guitar Accessories are of a high standard for the price. We deliver PSVANE Guitar Accessories straight to your door via our tracked *roadie service* across the UK, Europe, and the USA. A firm favourite among the finest Guitar Accessories & accessories available in the UK. if you want more details, click through to the PSVANE product page direct for more details, images, specs, and all good stuff to order securely online.
EL34C Specifications
Heater
- UH: 6.3 V
- IH: 1.5 A
Maximum Rating
- Ua: 800 V
- Ug2: 500 V
- Ug1: -100 V
- Pa: 25 W
- Pg2: 8 W
- Ik: 150 mA
- Rg1
- with cathode bias: 0.7 MΩ
- with fixed bias: 0.5 MΩ
- Uh-k: 100 V
- Tbulb: 250
Direct Interelectrode Capacitances
- Input: 15.2 PF
- Output: 8.4 PF
- Grid to plate: 1.1 PF
- Grid to filament: 1.0 PF
- Cathode to filament: 10 PF
Static Parameter
- Ua: 250 V
- Ug2: 250 V
- Ug3: 0 V
- -Ug1: 12.2 V
- Ia: 100 mA
- Gm: 11 mA/V
- Ri: 15 kΩ
- μg1-g2: 11
